groupProj. UProj. WSCorr. UCorr. WS BLLCMPos. angler MU MP

9077 110 716 76 496 16.79 308.38 43.62 289.37 0.7018 10.3 213.5


previous   or   next   observation for the same group / back to the solar disc

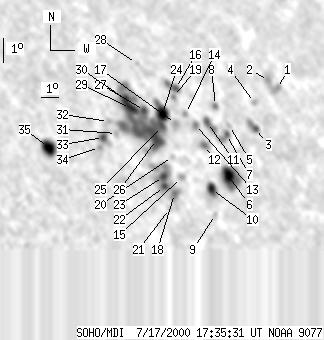

SOHO MDI 2000-07-17 17:35:31 UT
No observation available


spotProj. UProj. WSCorr. UCorr. WSBLLCMPos. angler MU MP

1 0 13 0 11 18.27 315.42 50.66 289.73 0.7825 -940.0 -709.9
2 0 10 0 8 18.62 314.97 50.22 290.27 0.7786 -700.0 -538.9
3 2 16 2 12 16.75 313.43 48.68 288.15 0.7591 607.8 489.6
4 0 6 0 4 17.79 313.74 48.99 289.45 0.7643 571.0 381.6
5 0 4 0 3 16.96 311.89 47.14 288.74 0.7427 298.0 282.0
6 15 57 11 41 14.97 311.22 46.47 286.18 0.7316 -987.0 -317.3
7 2 15 2 11 16.61 311.60 46.84 288.33 0.7387 538.2 404.1
8 0 6 0 4 17.81 311.33 46.57 290.00 0.7381 436.0 332.9
9 0 6 0 4 13.46 310.06 45.31 284.31 0.7158 163.0 265.6
10 8 19 6 14 14.47 310.08 45.33 285.70 0.7176 -694.8 -436.4
11 4 20 3 14 17.16 310.63 45.87 289.28 0.7289 895.3 742.3
12 0 10 0 7 16.24 310.17 45.42 288.14 0.7218 -730.0 -471.9
13 0 9 0 6 17.12 309.90 45.15 289.39 0.7206 1120.0 931.2
14 0 4 0 3 17.59 309.47 44.71 290.15 0.7167 644.0 526.7
15 0 7 0 5 15.04 308.50 43.75 286.82 0.7000 -770.0 -649.1
16 3 18 2 13 18.63 309.22 44.46 291.64 0.7164 704.0 568.7
17 0 10 0 7 17.22 308.77 44.02 289.82 0.7078 164.0 85.2
18 0 17 0 12 14.42 307.95 43.20 286.05 0.6922 -983.0 -867.1
19 0 5 0 4 18.31 308.99 44.24 291.27 0.7131 561.0 419.8
20 0 3 0 2 15.91 308.22 43.47 288.11 0.6984 -245.0 -197.2
21 0 3 0 2 13.84 307.54 42.78 285.30 0.6860 -513.0 -680.5
22 4 67 3 45 14.73 307.47 42.71 286.60 0.6869 -1204.6 -569.1
23 5 -22 3 -22 15.13 307.51 42.76 287.17 0.6882 -768.4 999999
24 15 323 10 221 17.66 308.15 43.40 290.60 0.7017 1037.5 739.3
25 2 -24 2 -24 17.14 307.94 43.19 289.93 0.6980 1284.6 999999
26 11 -24 7 -24 16.64 307.52 42.76 289.32 0.6917 469.2 999999
27 3 -24 2 -24 17.84 307.18 42.43 291.12 0.6908 795.1 999999
28 0 3 0 2 19.76 307.33 42.58 293.78 0.6981 -159.0 -248.3
29 9 -24 6 -24 17.96 306.43 41.68 291.53 0.6823 1255.7 999999
30 6 -24 4 -24 18.34 306.26 41.51 292.12 0.6814 985.9 999999
31 0 4 0 2 16.99 305.39 40.64 290.45 0.6670 76.0 -69.3
32 0 4 0 3 17.50 305.09 40.33 291.29 0.6648 -375.0 -246.3
33 5 17 3 11 16.87 304.65 39.90 290.49 0.6576 -867.8 -588.2
34 0 5 0 3 16.48 304.34 39.58 290.01 0.6526 -612.0 -622.9
35 16 35 10 22 16.61 301.68 36.93 291.13 0.6195 -1091.6 -661.1


  		• Proj. U -  Projected umbra area in millionths of solar disc, negative values indicate
    that the umbra consists of fragmented regions which cannot be separated without losing umbral area.
    In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that
    the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
  		• Proj. WS -  Projected whole spot area in millionths of solar disc, negative values indicate
    that several umbras have a common penumbra, e.g. -7 means that the given umbra shares
    a penumbra with umbra No.7, and the WS value is indicated at No.7.
  		• Corr. U -  Corrected umbra area in millionths of solar hemisphere, for negative values see above
  		• Corr. WS -  Corrected whole spot area in millionths of solar hemisphere, for negative values see above
  		• B -  Heliographic latitude B; positive: North, negative: South
  		• L -  Heliographic longitude L
  		• LCM -  Longitudinal distance from the Sun's central meridian
  		• Pos. angle -  Position angle
  		• r -  Distance from the centre of Sun's disc in terms of Sun's radius
  		• MU -  Mean magnetic field within the umbra contour averaged the pixel values with sign.
  		• MP -  Mean magnetic field within the penumbra contour averaged the pixel values with sign.
