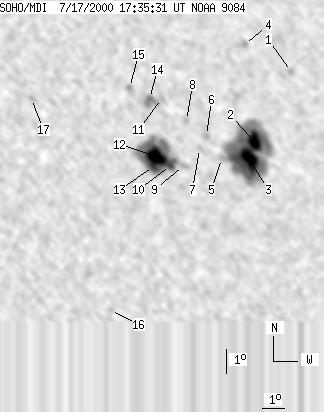

SOHO MDI 2000-07-17 17:35:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 83 | 584 | 47 | 326 | 19.10 | 289.02 | 24.26 | 303.52 | 0.4673 | 158.5 | 158.7 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-07-17 17:35:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 5 | 0 | 3 | 22.19 | 293.24 | 28.49 | 305.08 | 0.5418 | 548.0 | 555.5 | |
| 19 | 334 | 11 | 189 | 19.38 | 290.92 | 26.17 | 302.18 | 0.4935 | 1356.9 | 666.2 | |
| 27 | -2 | 15 | -2 | 18.65 | 290.57 | 25.81 | 301.14 | 0.4840 | 1757.7 | 999999 | |
| 0 | 5 | 0 | 3 | 23.39 | 291.23 | 26.48 | 308.78 | 0.5270 | 788.0 | 676.1 | |
| 0 | 4 | 0 | 2 | 18.73 | 289.29 | 24.54 | 302.45 | 0.4679 | 414.0 | 564.2 | |
| 0 | 6 | 0 | 3 | 19.69 | 288.75 | 24.00 | 304.78 | 0.4681 | 479.0 | 419.9 | |
| 0 | 6 | 0 | 3 | 19.17 | 288.35 | 23.59 | 304.20 | 0.4590 | -445.0 | -256.5 | |
| 0 | 6 | 0 | 3 | 20.34 | 287.93 | 23.18 | 306.81 | 0.4629 | -343.0 | -194.2 | |
| 0 | 8 | 0 | 4 | 18.50 | 287.52 | 22.77 | 303.74 | 0.4432 | -571.0 | -464.1 | |
| 3 | 167 | 2 | 92 | 18.52 | 286.94 | 22.18 | 304.40 | 0.4357 | -968.5 | -688.2 | |
| 0 | 6 | 0 | 3 | 21.27 | 286.94 | 22.18 | 309.63 | 0.4587 | -575.0 | -467.5 | |
| 28 | -10 | 16 | -10 | 18.91 | 286.36 | 21.61 | 305.81 | 0.4314 | -1696.3 | 999999 | |
| 6 | -10 | 3 | -10 | 18.50 | 286.17 | 21.42 | 305.22 | 0.4257 | -1365.7 | 999999 | |
| 0 | 21 | 0 | 12 | 21.29 | 286.39 | 21.64 | 310.31 | 0.4524 | -682.0 | -841.7 | |
| 0 | 6 | 0 | 3 | 21.77 | 285.55 | 20.80 | 312.20 | 0.4470 | -520.0 | -398.3 | |
| 0 | 5 | 0 | 3 | 12.76 | 283.69 | 18.94 | 294.62 | 0.3497 | 189.0 | 266.0 | |
| 0 | 5 | 0 | 3 | 21.42 | 281.10 | 16.35 | 318.03 | 0.3936 | -707.0 | -616.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
