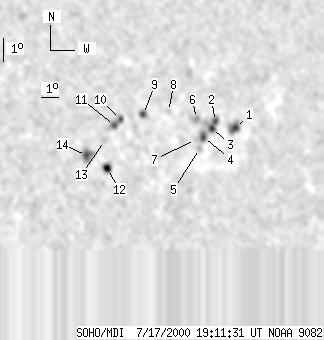

SOHO MDI 2000-07-17 19:11:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 27 | 140 | 20 | 102 | -11.28 | 307.90 | 44.03 | 249.59 | 0.7285 | 64.6 | -119.8 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-07-17 19:11:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4 | 20 | 3 | 15 | -11.21 | 311.86 | 47.99 | 251.26 | 0.7719 | -612.4 | -576.7 | |
| 2 | 26 | 2 | 19 | -10.89 | 310.60 | 46.72 | 251.22 | 0.7575 | -607.7 | -665.2 | |
| 3 | -2 | 2 | -2 | -11.16 | 310.42 | 46.55 | 250.80 | 0.7564 | -759.7 | 999999 | |
| 3 | 12 | 2 | 9 | -11.51 | 310.02 | 46.15 | 250.22 | 0.7533 | -904.5 | -802.1 | |
| 0 | 4 | 0 | 3 | -11.95 | 309.88 | 46.01 | 249.60 | 0.7533 | -787.0 | -605.2 | |
| 0 | 9 | 0 | 7 | -10.70 | 309.45 | 45.58 | 251.04 | 0.7443 | -796.0 | -737.9 | |
| 0 | 2 | 0 | 2 | -11.56 | 309.57 | 45.69 | 249.97 | 0.7485 | -685.0 | -652.8 | |
| 0 | 3 | 0 | 2 | -10.31 | 307.78 | 43.91 | 250.91 | 0.7244 | -535.0 | -497.6 | |
| 2 | 8 | 1 | 6 | -10.36 | 306.41 | 42.54 | 250.29 | 0.7087 | 627.4 | 416.4 | |
| 2 | 15 | 1 | 11 | -10.49 | 305.18 | 41.31 | 249.58 | 0.6949 | 580.9 | 620.0 | |
| 2 | -10 | 2 | -10 | -10.72 | 304.90 | 41.03 | 249.14 | 0.6925 | 755.1 | 999999 | |
| 5 | 12 | 4 | 8 | -12.48 | 304.84 | 40.97 | 246.71 | 0.6992 | 607.1 | 473.1 | |
| 0 | 6 | 0 | 4 | -11.31 | 304.46 | 40.59 | 248.12 | 0.6899 | 276.0 | 302.0 | |
| 4 | 23 | 3 | 16 | -11.88 | 303.61 | 39.74 | 246.92 | 0.6823 | 1032.1 | 703.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
