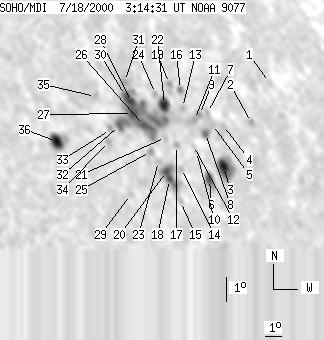

SOHO MDI 2000-07-18 03:14:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 89 | 544 | 68 | 409 | 16.72 | 307.71 | 48.28 | 288.21 | 0.7542 | -34.9 | 233.4 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-07-18 03:14:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 5 | 0 | 4 | 18.14 | 315.66 | 56.23 | 288.67 | 0.8360 | -605.0 | -647.0 | |
| 0 | 6 | 0 | 5 | 16.63 | 313.66 | 54.23 | 287.11 | 0.8156 | 522.0 | 339.7 | |
| 12 | 51 | 10 | 41 | 15.00 | 311.12 | 51.69 | 285.40 | 0.7884 | -666.1 | -125.4 | |
| 0 | 6 | 0 | 5 | 16.63 | 311.72 | 52.29 | 287.37 | 0.7965 | 441.0 | 313.3 | |
| 0 | 6 | 0 | 5 | 16.72 | 311.01 | 51.58 | 287.59 | 0.7894 | 685.0 | 597.5 | |
| 7 | 20 | 6 | 15 | 14.54 | 310.05 | 50.62 | 284.95 | 0.7767 | -495.8 | -393.6 | |
| 0 | 9 | 0 | 8 | 17.22 | 310.87 | 51.44 | 288.24 | 0.7887 | 601.0 | 608.1 | |
| 3 | 12 | 3 | 9 | 16.39 | 310.42 | 50.99 | 287.26 | 0.7829 | -370.4 | -98.4 | |
| 0 | 9 | 0 | 7 | 17.17 | 310.32 | 50.89 | 288.27 | 0.7830 | 704.0 | 728.1 | |
| 0 | 3 | 0 | 2 | 15.70 | 309.60 | 50.16 | 286.51 | 0.7733 | -231.0 | -319.6 | |
| 0 | 5 | 0 | 4 | 16.99 | 309.92 | 50.49 | 288.11 | 0.7786 | 934.0 | 841.3 | |
| 0 | 3 | 0 | 2 | 15.95 | 309.49 | 50.06 | 286.85 | 0.7725 | -308.0 | -287.1 | |
| 0 | 4 | 0 | 3 | 17.51 | 309.34 | 49.91 | 288.88 | 0.7733 | 492.0 | 427.9 | |
| 0 | 5 | 0 | 4 | 15.08 | 308.44 | 49.01 | 285.88 | 0.7600 | -558.0 | -569.4 | |
| 0 | 4 | 0 | 3 | 13.77 | 307.99 | 48.56 | 284.23 | 0.7534 | -582.0 | -514.6 | |
| 0 | 7 | 0 | 6 | 18.24 | 309.49 | 50.06 | 289.79 | 0.7762 | 576.0 | 365.6 | |
| 0 | 5 | 0 | 4 | 16.02 | 308.43 | 49.00 | 287.11 | 0.7612 | -122.0 | -82.1 | |
| 4 | 47 | 3 | 35 | 14.69 | 307.58 | 48.14 | 285.50 | 0.7500 | -1066.5 | -748.0 | |
| 0 | 14 | 0 | 11 | 18.53 | 308.89 | 49.46 | 290.27 | 0.7704 | 273.0 | 335.1 | |
| 6 | -18 | 5 | -18 | 15.02 | 307.49 | 48.06 | 285.95 | 0.7495 | -871.8 | 999999 | |
| 0 | 5 | 0 | 4 | 16.38 | 307.86 | 48.43 | 287.68 | 0.7556 | 334.0 | 345.6 | |
| 12 | 235 | 9 | 174 | 17.70 | 308.26 | 48.83 | 289.34 | 0.7622 | 791.9 | 745.0 | |
| 0 | 5 | 0 | 4 | 15.45 | 307.13 | 47.70 | 286.58 | 0.7461 | -443.0 | -319.7 | |
| 0 | 6 | 0 | 4 | 18.18 | 307.86 | 48.43 | 290.04 | 0.7589 | 358.0 | 301.4 | |
| 0 | 6 | 0 | 4 | 15.87 | 306.77 | 47.34 | 287.21 | 0.7428 | -315.0 | -343.3 | |
| 6 | -22 | 5 | -22 | 16.93 | 306.74 | 47.31 | 288.63 | 0.7444 | 752.0 | 999999 | |
| 8 | -22 | 6 | -22 | 17.46 | 306.19 | 46.75 | 289.45 | 0.7392 | 895.4 | 999999 | |
| 11 | -22 | 8 | -22 | 17.94 | 306.29 | 46.86 | 290.07 | 0.7414 | 1031.6 | 999999 | |
| 0 | 5 | 0 | 3 | 14.23 | 305.11 | 45.67 | 285.28 | 0.7211 | -628.0 | -502.7 | |
| -28 | -22 | -28 | -22 | 18.20 | 306.02 | 46.59 | 290.49 | 0.7389 | 999999 | 999999 | |
| 0 | 8 | 0 | 6 | 18.77 | 306.16 | 46.73 | 291.21 | 0.7417 | 208.0 | 236.3 | |
| 6 | -22 | 4 | -22 | 17.02 | 305.26 | 45.83 | 289.07 | 0.7280 | 86.0 | 999999 | |
| 0 | 4 | 0 | 3 | 16.89 | 304.69 | 45.26 | 289.02 | 0.7212 | -724.0 | -590.4 | |
| 0 | 7 | 0 | 5 | 16.42 | 304.43 | 44.99 | 288.43 | 0.7172 | -608.0 | -484.9 | |
| 0 | 6 | 0 | 5 | 18.26 | 304.24 | 44.81 | 291.01 | 0.7192 | -375.0 | -166.5 | |
| 14 | 36 | 9 | 24 | 16.58 | 301.50 | 42.07 | 289.39 | 0.6831 | -1024.1 | -402.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
