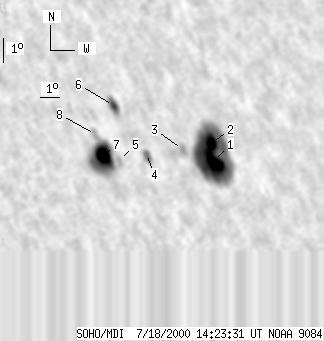

SOHO MDI 2000-07-18 14:23:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 70 | 446 | 44 | 281 | 18.96 | 289.56 | 36.28 | 295.08 | 0.6195 | 593.2 | 236.4 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-07-18 14:23:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 29 | 283 | 19 | 182 | 18.51 | 291.29 | 38.01 | 293.55 | 0.6393 | 1940.0 | 623.4 | |
| 14 | -1 | 9 | -1 | 19.28 | 291.39 | 38.11 | 294.68 | 0.6434 | 1135.2 | 999999 | |
| 0 | 10 | 0 | 6 | 19.07 | 289.81 | 36.53 | 295.04 | 0.6231 | 467.0 | 659.4 | |
| 0 | 12 | 0 | 7 | 19.00 | 287.93 | 34.65 | 295.81 | 0.5994 | -419.0 | -169.2 | |
| 0 | 6 | 0 | 4 | 18.81 | 286.53 | 33.25 | 296.24 | 0.5808 | -476.0 | -340.9 | |
| 5 | 21 | 3 | 13 | 21.03 | 286.75 | 33.47 | 299.66 | 0.5946 | -950.6 | -392.1 | |
| 22 | 102 | 13 | 62 | 19.01 | 285.77 | 32.49 | 296.98 | 0.5721 | -1344.6 | -672.3 | |
| 0 | 12 | 0 | 7 | 19.88 | 285.57 | 32.29 | 298.53 | 0.5740 | -432.0 | -236.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
