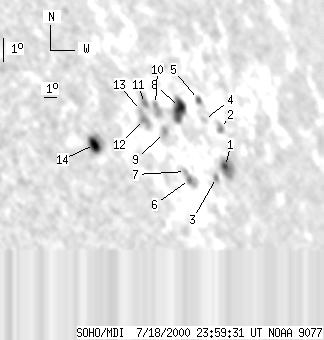

SOHO MDI 2000-07-18 23:59:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 33 | 212 | 31 | 208 | 16.50 | 307.55 | 59.57 | 286.40 | 0.8626 | 69.6 | 177.5 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-07-18 23:59:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4 | 36 | 4 | 39 | 14.96 | 311.03 | 63.04 | 284.38 | 0.8908 | -238.9 | -21.1 | |
| 0 | 9 | 0 | 10 | 16.49 | 311.42 | 63.44 | 286.07 | 0.8944 | 219.0 | 257.6 | |
| 0 | 6 | 0 | 6 | 14.59 | 310.03 | 62.04 | 284.00 | 0.8829 | -242.0 | -172.4 | |
| 0 | 5 | 0 | 5 | 16.94 | 310.23 | 62.25 | 286.66 | 0.8855 | 601.0 | 521.6 | |
| 1 | 7 | 1 | 7 | 17.77 | 310.19 | 62.20 | 287.59 | 0.8856 | 241.0 | 146.4 | |
| 0 | 15 | 0 | 15 | 14.67 | 307.78 | 59.79 | 284.21 | 0.8644 | -813.0 | -554.3 | |
| 0 | 4 | 0 | 4 | 15.01 | 307.60 | 59.62 | 284.61 | 0.8631 | -429.0 | -521.0 | |
| 15 | 38 | 15 | 38 | 17.57 | 308.41 | 60.43 | 287.51 | 0.8714 | 643.0 | 557.1 | |
| 0 | 12 | 0 | 12 | 16.66 | 306.70 | 58.71 | 286.61 | 0.8564 | 362.0 | 267.9 | |
| 0 | 16 | 0 | 15 | 17.82 | 306.57 | 58.58 | 287.97 | 0.8562 | 507.0 | 616.4 | |
| 0 | 10 | 0 | 10 | 17.92 | 305.75 | 57.76 | 288.18 | 0.8492 | 846.0 | 668.0 | |
| 0 | 16 | 0 | 15 | 17.29 | 305.35 | 57.37 | 287.48 | 0.8451 | 687.0 | 371.2 | |
| 0 | 4 | 0 | 4 | 17.66 | 305.30 | 57.32 | 287.92 | 0.8450 | 559.0 | 512.3 | |
| 13 | 34 | 11 | 28 | 16.53 | 301.42 | 53.44 | 287.03 | 0.8075 | -644.9 | -177.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
