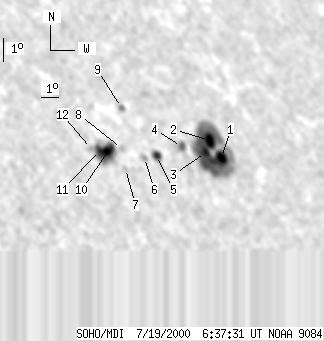

SOHO MDI 2000-07-19 06:37:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 53 | 347 | 38 | 252 | 18.80 | 290.31 | 45.98 | 291.39 | 0.7328 | 146.7 | 232.4 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-07-19 06:37:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11 | 244 | 8 | 181 | 18.37 | 292.12 | 47.80 | 290.34 | 0.7521 | 665.1 | 489.4 | |
| 11 | -1 | 8 | -1 | 19.10 | 291.65 | 47.32 | 291.40 | 0.7485 | 831.6 | 999999 | |
| 6 | -1 | 5 | -1 | 18.63 | 291.23 | 46.90 | 290.88 | 0.7429 | 1281.0 | 999999 | |
| 2 | 11 | 2 | 8 | 18.95 | 289.89 | 45.57 | 291.66 | 0.7289 | 762.2 | 638.8 | |
| 6 | 14 | 4 | 10 | 18.67 | 288.32 | 43.99 | 291.70 | 0.7105 | -538.2 | -360.5 | |
| 0 | 7 | 0 | 5 | 18.63 | 287.61 | 43.28 | 291.85 | 0.7023 | -587.0 | -401.5 | |
| 0 | 3 | 0 | 2 | 18.25 | 286.41 | 42.08 | 291.67 | 0.6872 | -609.0 | -497.6 | |
| 0 | 5 | 0 | 4 | 19.07 | 286.44 | 42.11 | 292.82 | 0.6899 | -347.0 | -321.6 | |
| 0 | 5 | 0 | 4 | 20.73 | 286.99 | 42.66 | 294.96 | 0.7014 | -353.0 | -319.4 | |
| 11 | 54 | 7 | 36 | 19.02 | 285.69 | 41.36 | 293.01 | 0.6811 | -999.5 | -679.0 | |
| 6 | -10 | 4 | -10 | 19.05 | 285.20 | 40.87 | 293.22 | 0.6753 | -1126.4 | 999999 | |
| 0 | 4 | 0 | 2 | 19.15 | 284.79 | 40.46 | 293.51 | 0.6708 | -743.0 | -760.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
