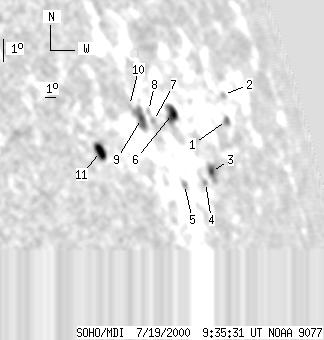

SOHO MDI 2000-07-19 09:35:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 21 | 128 | 21 | 148 | 16.58 | 307.78 | 65.09 | 286.12 | 0.9047 | 79.8 | 178.1 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-07-19 09:35:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 7 | 0 | 10 | 16.80 | 314.17 | 71.48 | 286.12 | 0.9463 | 241.0 | 146.9 | |
| 0 | 3 | 0 | 5 | 17.83 | 314.75 | 72.06 | 287.20 | 0.9495 | -225.0 | -213.0 | |
| 2 | 22 | 2 | 29 | 14.96 | 310.91 | 68.22 | 284.20 | 0.9270 | -127.7 | 20.8 | |
| 0 | 4 | 0 | 6 | 14.58 | 310.00 | 67.31 | 283.81 | 0.9212 | -41.0 | -35.4 | |
| 0 | 6 | 0 | 7 | 14.66 | 307.89 | 65.20 | 283.94 | 0.9067 | -656.0 | -540.9 | |
| 8 | 25 | 9 | 29 | 17.52 | 308.52 | 65.83 | 287.07 | 0.9118 | 575.0 | 493.8 | |
| 0 | 4 | 0 | 4 | 17.38 | 306.55 | 63.86 | 287.02 | 0.8978 | 346.0 | 466.4 | |
| 0 | 2 | 0 | 2 | 17.80 | 306.35 | 63.66 | 287.51 | 0.8966 | 364.0 | 393.0 | |
| 0 | 30 | 0 | 32 | 17.53 | 305.53 | 62.84 | 287.26 | 0.8903 | 586.0 | 531.8 | |
| 0 | 2 | 0 | 2 | 18.12 | 304.81 | 62.12 | 287.98 | 0.8851 | 589.0 | 494.6 | |
| 11 | 23 | 10 | 22 | 16.47 | 301.44 | 58.75 | 286.36 | 0.8565 | -335.6 | -256.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
