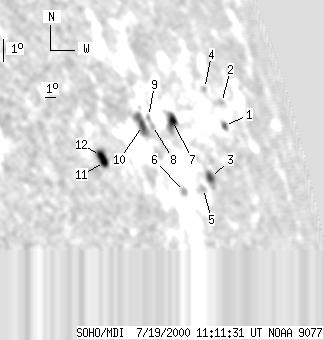

SOHO MDI 2000-07-19 11:11:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15 | 121 | 16 | 151 | 16.71 | 307.87 | 66.06 | 286.21 | 0.9113 | -5.0 | 145.9 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-07-19 11:11:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 7 | 0 | 10 | 16.84 | 314.29 | 72.48 | 286.16 | 0.9516 | 156.0 | 50.8 | |
| 0 | 4 | 0 | 7 | 17.76 | 314.79 | 72.98 | 287.12 | 0.9542 | -294.0 | -222.2 | |
| 0 | 17 | 0 | 24 | 14.97 | 310.95 | 69.15 | 284.20 | 0.9328 | 157.0 | 11.7 | |
| 0 | 3 | 0 | 5 | 18.46 | 313.17 | 71.36 | 287.89 | 0.9459 | -140.0 | -192.2 | |
| 0 | 3 | 0 | 4 | 14.60 | 309.91 | 68.10 | 283.82 | 0.9263 | -89.0 | -70.6 | |
| 0 | 6 | 0 | 8 | 14.63 | 307.91 | 66.10 | 283.89 | 0.9130 | -623.0 | -539.3 | |
| 6 | 22 | 7 | 28 | 17.49 | 308.56 | 66.76 | 287.00 | 0.9181 | 509.1 | 493.8 | |
| 0 | 3 | 0 | 4 | 17.44 | 306.49 | 64.68 | 287.04 | 0.9038 | 567.0 | 497.8 | |
| 0 | 4 | 0 | 5 | 17.82 | 306.36 | 64.55 | 287.47 | 0.9030 | 383.0 | 385.0 | |
| 0 | 28 | 0 | 32 | 17.51 | 305.57 | 63.76 | 287.17 | 0.8972 | 535.0 | 557.3 | |
| 5 | 24 | 5 | 24 | 16.28 | 301.52 | 59.72 | 286.06 | 0.8646 | -375.4 | -300.9 | |
| 4 | -11 | 4 | -11 | 16.58 | 301.35 | 59.54 | 286.42 | 0.8633 | -476.6 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
