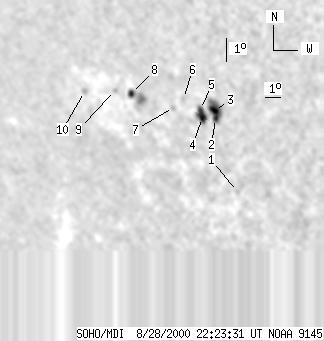

SOHO MDI 2000-08-28 22:23:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 24 | 113 | 18 | 88 | -9.00 | 18.87 | -47.57 | 108.15 | 0.7688 | -589.1 | -100.0 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-08-28 22:23:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 3 | 0 | 2 | -12.20 | 21.95 | -44.49 | 113.41 | 0.7487 | -520.0 | -430.1 | |
| 3 | 36 | 2 | 27 | -9.26 | 21.26 | -45.18 | 109.39 | 0.7445 | -795.7 | -691.5 | |
| 8 | -2 | 6 | -2 | -8.93 | 21.26 | -45.19 | 108.97 | 0.7433 | -1127.7 | 999999 | |
| 7 | 25 | 5 | 19 | -9.29 | 20.51 | -45.93 | 109.11 | 0.7527 | -669.0 | -409.3 | |
| 2 | -4 | 2 | -4 | -8.97 | 20.45 | -45.99 | 108.68 | 0.7522 | -716.0 | 999999 | |
| 0 | 3 | 0 | 2 | -8.60 | 19.52 | -46.92 | 107.85 | 0.7610 | -82.0 | -203.7 | |
| 0 | 4 | 0 | 3 | -9.03 | 18.86 | -47.58 | 108.14 | 0.7695 | -530.0 | -525.3 | |
| 4 | 35 | 3 | 28 | -8.70 | 16.37 | -50.07 | 106.83 | 0.7942 | 667.7 | 657.2 | |
| 0 | 3 | 0 | 3 | -8.69 | 15.30 | -51.14 | 106.44 | 0.8048 | 505.0 | 388.7 | |
| 0 | 4 | 0 | 4 | -8.93 | 13.29 | -53.15 | 106.08 | 0.8249 | 319.0 | 231.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
