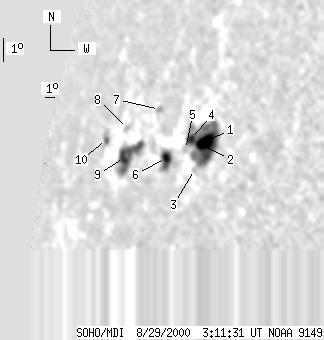

SOHO MDI 2000-08-29 03:11:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 46 | 290 | 57 | 363 | 12.98 | 356.19 | -67.61 | 78.87 | 0.9180 | 328.8 | 58.9 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-08-29 03:11:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 21 | 161 | 23 | 178 | 13.71 | 0.12 | -63.68 | 78.24 | 0.8914 | 906.0 | 352.7 | |
| -1 | -1 | -1 | -1 | 13.48 | 359.58 | -64.22 | 78.47 | 0.8955 | 999999 | 999999 | |
| 0 | 2 | 0 | 3 | 12.47 | 359.50 | -64.30 | 79.60 | 0.8963 | 265.0 | 192.5 | |
| 5 | -1 | 6 | -1 | 13.57 | 358.57 | -65.22 | 78.34 | 0.9030 | 246.6 | 999999 | |
| 0 | 3 | 0 | 3 | 13.14 | 358.31 | -65.49 | 78.82 | 0.9050 | -191.0 | -158.4 | |
| 9 | 29 | 11 | 35 | 12.63 | 356.65 | -67.15 | 79.31 | 0.9168 | 418.3 | 250.6 | |
| 0 | 5 | 0 | 6 | 14.36 | 354.84 | -68.96 | 77.36 | 0.9282 | 81.0 | 22.6 | |
| 0 | 5 | 0 | 8 | 13.23 | 351.69 | -72.11 | 78.43 | 0.9471 | -446.0 | -381.4 | |
| 11 | 73 | 17 | 109 | 12.10 | 352.08 | -71.72 | 79.64 | 0.9453 | -460.1 | -440.6 | |
| 0 | 12 | 0 | 21 | 12.49 | 349.25 | -74.55 | 79.04 | 0.9598 | 154.0 | 32.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
