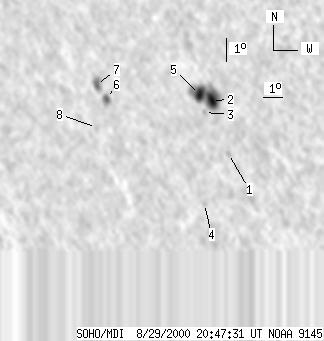

SOHO MDI 2000-08-29 20:47:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 32 | 128 | 19 | 79 | -9.09 | 19.96 | -34.14 | 115.11 | 0.6137 | -723.7 | -342.2 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-08-29 20:47:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 3 | 0 | 2 | -11.06 | 22.11 | -32.00 | 119.51 | 0.5998 | 270.0 | 187.2 | |
| 14 | 86 | 8 | 53 | -8.92 | 21.54 | -32.56 | 115.88 | 0.5932 | -1312.1 | -728.9 | |
| 0 | 3 | 0 | 2 | -9.44 | 21.16 | -32.95 | 116.39 | 0.6012 | -294.0 | -260.6 | |
| 0 | 4 | 0 | 2 | -13.24 | 20.65 | -33.45 | 121.49 | 0.6315 | -599.0 | -516.1 | |
| 11 | -2 | 7 | -2 | -8.72 | 20.99 | -33.11 | 115.18 | 0.5989 | -1027.4 | 999999 | |
| 3 | 11 | 2 | 7 | -9.23 | 16.39 | -37.72 | 113.03 | 0.6585 | 814.4 | 632.5 | |
| 4 | 16 | 2 | 10 | -8.69 | 15.95 | -38.16 | 112.02 | 0.6611 | 858.9 | 668.4 | |
| 0 | 5 | 0 | 3 | -10.47 | 15.71 | -38.40 | 114.36 | 0.6728 | 689.0 | 554.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
