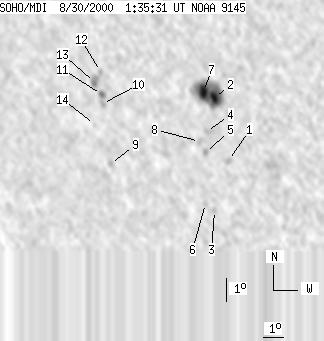

SOHO MDI 2000-08-30 01:35:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 21 | 160 | 12 | 97 | -9.48 | 20.20 | -31.26 | 117.75 | 0.5804 | -999.2 | -377.2 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-08-30 01:35:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 6 | 0 | 4 | -11.46 | 22.03 | -29.43 | 122.25 | 0.5716 | 356.0 | 293.0 | |
| 9 | 94 | 5 | 56 | -8.90 | 21.65 | -29.81 | 117.95 | 0.5582 | -1428.1 | -742.0 | |
| 0 | 3 | 0 | 2 | -13.60 | 21.10 | -30.36 | 124.55 | 0.5986 | -577.0 | -598.7 | |
| 0 | 8 | 0 | 5 | -10.32 | 21.14 | -30.32 | 119.76 | 0.5743 | -285.0 | -305.2 | |
| 0 | 4 | 0 | 2 | -11.20 | 21.00 | -30.47 | 120.96 | 0.5822 | -330.0 | -241.5 | |
| 0 | 4 | 0 | 3 | -13.34 | 20.72 | -30.74 | 123.83 | 0.6011 | -640.0 | -491.6 | |
| 12 | -2 | 7 | -2 | -8.69 | 21.16 | -30.30 | 117.22 | 0.5630 | -1065.7 | 999999 | |
| 0 | 6 | 0 | 4 | -10.76 | 20.77 | -30.70 | 120.11 | 0.5819 | -627.0 | -359.5 | |
| 0 | 5 | 0 | 3 | -11.98 | 16.35 | -35.11 | 118.54 | 0.6428 | -472.0 | -538.8 | |
| 0 | 5 | 0 | 3 | -9.52 | 16.29 | -35.17 | 114.99 | 0.6291 | 711.0 | 599.8 | |
| 0 | 8 | 0 | 5 | -9.15 | 16.28 | -35.18 | 114.45 | 0.6271 | 760.0 | 590.7 | |
| 0 | 4 | 0 | 2 | -8.21 | 16.34 | -35.13 | 113.10 | 0.6214 | 635.0 | 492.2 | |
| 0 | 11 | 0 | 7 | -8.68 | 16.00 | -35.47 | 113.59 | 0.6282 | 927.0 | 743.2 | |
| 0 | 2 | 0 | 1 | -10.42 | 15.78 | -35.68 | 115.96 | 0.6403 | 602.0 | 585.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
