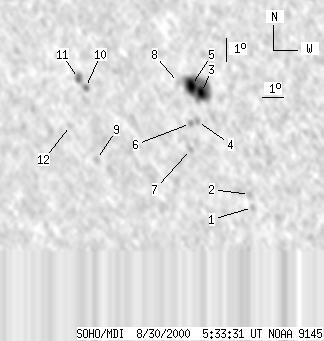

SOHO MDI 2000-08-30 05:33:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18 | 134 | 11 | 79 | -9.50 | 20.45 | -28.83 | 119.82 | 0.5502 | -1175.0 | -513.2 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-08-30 05:33:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 4 | 0 | 2 | -13.57 | 23.52 | -25.76 | 129.01 | 0.5459 | -515.0 | -418.9 | |
| 0 | 5 | 0 | 3 | -13.03 | 23.45 | -25.83 | 128.14 | 0.5419 | -665.0 | -617.6 | |
| 8 | 81 | 5 | 47 | -8.92 | 21.70 | -27.58 | 119.93 | 0.5299 | -1463.2 | -844.1 | |
| 0 | 5 | 0 | 3 | -10.13 | 21.41 | -27.87 | 121.61 | 0.5425 | -226.0 | -293.8 | |
| 10 | -3 | 6 | -3 | -8.66 | 21.27 | -28.01 | 119.11 | 0.5336 | -1287.5 | 999999 | |
| 0 | 5 | 0 | 3 | -10.23 | 21.08 | -28.20 | 121.47 | 0.5474 | -397.0 | -447.3 | |
| 0 | 5 | 0 | 3 | -11.31 | 20.97 | -28.31 | 123.04 | 0.5569 | -379.0 | -191.4 | |
| 0 | 3 | 0 | 2 | -8.57 | 20.69 | -28.59 | 118.46 | 0.5404 | -420.0 | -359.9 | |
| 0 | 7 | 0 | 4 | -12.02 | 16.50 | -32.78 | 120.30 | 0.6156 | -716.0 | -528.6 | |
| 0 | 5 | 0 | 3 | -9.07 | 16.33 | -32.95 | 115.83 | 0.5990 | 708.0 | 632.3 | |
| 0 | 10 | 0 | 6 | -8.72 | 16.03 | -33.25 | 115.10 | 0.6007 | 812.0 | 665.9 | |
| 0 | 4 | 0 | 3 | -10.69 | 15.42 | -33.86 | 117.59 | 0.6200 | 626.0 | 519.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
