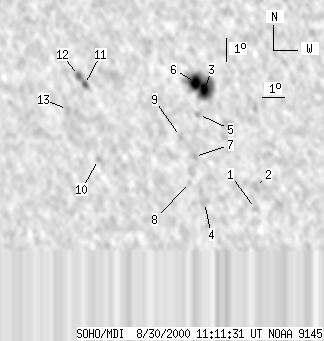

SOHO MDI 2000-08-30 11:11:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 20 | 147 | 11 | 85 | -9.76 | 20.58 | -25.60 | 123.36 | 0.5120 | -1173.6 | -484.8 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-08-30 11:11:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 5 | 0 | 3 | -13.77 | 23.55 | -22.62 | 132.99 | 0.5129 | -417.0 | -312.2 | |
| 0 | 7 | 0 | 4 | -12.89 | 23.64 | -22.54 | 131.79 | 0.5031 | -681.0 | -566.3 | |
| 8 | 87 | 4 | 49 | -8.94 | 21.75 | -24.43 | 123.14 | 0.4899 | -1394.7 | -825.6 | |
| 0 | 5 | 0 | 3 | -13.64 | 21.31 | -24.86 | 130.11 | 0.5364 | -661.0 | -612.5 | |
| 0 | 5 | 0 | 3 | -9.98 | 21.40 | -24.77 | 124.52 | 0.5029 | -495.0 | -444.8 | |
| 12 | -3 | 7 | -3 | -8.67 | 21.37 | -24.81 | 122.28 | 0.4925 | -1370.8 | 999999 | |
| 0 | 4 | 0 | 2 | -11.73 | 21.07 | -25.11 | 126.97 | 0.5221 | 308.0 | 268.0 | |
| 0 | 3 | 0 | 2 | -12.83 | 20.73 | -25.44 | 128.28 | 0.5357 | -656.0 | -564.8 | |
| 0 | 5 | 0 | 3 | -10.94 | 20.52 | -25.65 | 125.12 | 0.5218 | -770.0 | -584.0 | |
| 0 | 3 | 0 | 2 | -12.12 | 16.68 | -29.49 | 123.18 | 0.5774 | -560.0 | -501.4 | |
| 0 | 6 | 0 | 4 | -9.05 | 16.37 | -29.81 | 118.21 | 0.5593 | 722.0 | 551.9 | |
| 0 | 9 | 0 | 5 | -8.70 | 16.12 | -30.05 | 117.45 | 0.5600 | 1011.0 | 737.8 | |
| 0 | 8 | 0 | 5 | -10.14 | 15.47 | -30.70 | 119.17 | 0.5778 | 614.0 | 615.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
