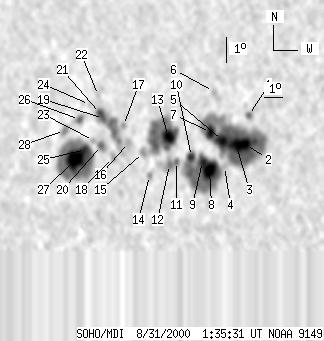

SOHO MDI 2000-08-31 01:35:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 148 | 1015 | 95 | 676 | 13.15 | 356.13 | -42.12 | 78.23 | 0.6683 | 287.5 | 87.3 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-08-31 01:35:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 7 | 0 | 4 | 14.71 | 0.40 | -37.85 | 75.25 | 0.6160 | 721.0 | 580.2 | |
| 9 | 320 | 5 | 203 | 13.56 | 0.47 | -37.78 | 77.10 | 0.6132 | 1571.6 | 682.8 | |
| 13 | -2 | 8 | -2 | 13.49 | 0.02 | -38.23 | 77.29 | 0.6191 | 1461.1 | 999999 | |
| 0 | 4 | 0 | 2 | 12.62 | 359.56 | -38.69 | 78.75 | 0.6242 | 532.0 | 455.1 | |
| 15 | -2 | 9 | -2 | 13.63 | 359.27 | -38.98 | 77.18 | 0.6293 | 1183.0 | 999999 | |
| 0 | 5 | 0 | 3 | 15.52 | 358.39 | -39.86 | 74.37 | 0.6436 | -378.0 | -392.1 | |
| 10 | -2 | 6 | -2 | 13.90 | 358.58 | -39.67 | 76.86 | 0.6386 | 983.1 | 999999 | |
| 21 | 174 | 13 | 112 | 12.40 | 358.82 | -39.43 | 79.18 | 0.6338 | 1355.4 | 410.3 | |
| 8 | -8 | 5 | -8 | 12.73 | 358.39 | -39.86 | 78.72 | 0.6397 | 869.8 | 999999 | |
| 5 | -8 | 3 | -8 | 12.88 | 357.78 | -40.47 | 78.55 | 0.6478 | 687.7 | 999999 | |
| 0 | 21 | 0 | 14 | 12.62 | 357.03 | -41.22 | 79.02 | 0.6573 | 674.0 | 374.6 | |
| 2 | -11 | 1 | -11 | 12.47 | 356.68 | -41.56 | 79.28 | 0.6616 | 595.1 | 999999 | |
| 14 | 130 | 9 | 86 | 13.56 | 356.41 | -41.84 | 77.66 | 0.6662 | 1011.3 | 114.2 | |
| 0 | 5 | 0 | 4 | 11.95 | 355.70 | -42.55 | 80.13 | 0.6738 | -763.0 | -584.1 | |
| 0 | 9 | 0 | 6 | 12.82 | 355.19 | -43.06 | 78.87 | 0.6808 | -687.0 | -538.6 | |
| 0 | 9 | 0 | 6 | 13.15 | 354.29 | -43.96 | 78.48 | 0.6922 | -336.0 | -315.7 | |
| 0 | 4 | 0 | 3 | 13.79 | 353.85 | -44.40 | 77.59 | 0.6980 | -904.0 | -776.1 | |
| 0 | 8 | 0 | 5 | 12.49 | 353.58 | -44.66 | 79.48 | 0.7004 | -770.0 | -593.0 | |
| 2 | 74 | 1 | 52 | 13.96 | 352.66 | -45.59 | 77.45 | 0.7125 | -1122.8 | -892.2 | |
| 3 | 12 | 2 | 8 | 12.90 | 352.80 | -45.44 | 78.94 | 0.7101 | -908.6 | -731.5 | |
| 7 | -19 | 5 | -19 | 14.14 | 352.44 | -45.81 | 77.22 | 0.7153 | -1094.2 | 999999 | |
| 0 | 2 | 0 | 2 | 14.84 | 352.14 | -46.11 | 76.28 | 0.7195 | -700.0 | -678.1 | |
| 0 | 5 | 0 | 4 | 13.05 | 352.30 | -45.94 | 78.76 | 0.7161 | -781.0 | -718.5 | |
| 0 | 3 | 0 | 2 | 14.44 | 351.71 | -46.53 | 76.88 | 0.7240 | -548.0 | -522.7 | |
| 6 | 199 | 5 | 143 | 12.66 | 351.93 | -46.32 | 79.32 | 0.7203 | -1068.5 | -455.9 | |
| 3 | 14 | 2 | 10 | 13.80 | 351.29 | -46.96 | 77.79 | 0.7285 | -498.8 | -422.1 | |
| 30 | -25 | 21 | -25 | 12.22 | 351.45 | -46.80 | 79.96 | 0.7259 | -1243.1 | 999999 | |
| 0 | 10 | 0 | 7 | 13.29 | 350.53 | -47.72 | 78.53 | 0.7370 | -569.0 | -429.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
