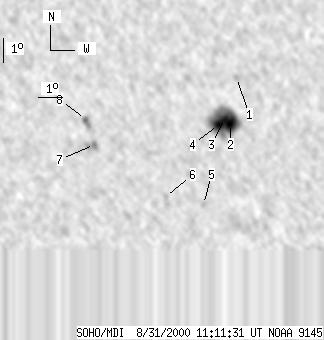

SOHO MDI 2000-08-31 11:11:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 22 | 138 | 12 | 74 | -8.96 | 21.03 | -11.93 | 143.73 | 0.3455 | -1461.3 | -499.5 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-08-31 11:11:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 5 | 0 | 3 | -6.91 | 22.45 | -10.51 | 143.17 | 0.3035 | 483.0 | 314.0 | |
| 13 | 104 | 7 | 55 | -8.79 | 22.16 | -10.80 | 145.88 | 0.3317 | -1645.4 | -805.2 | |
| 4 | -2 | 2 | -2 | -8.59 | 21.92 | -11.04 | 144.96 | 0.3312 | -1728.7 | 999999 | |
| 5 | -2 | 3 | -2 | -8.84 | 21.67 | -11.29 | 144.78 | 0.3369 | -1417.5 | 999999 | |
| 0 | 5 | 0 | 3 | -12.16 | 20.93 | -12.03 | 148.22 | 0.3886 | -650.0 | -645.7 | |
| 0 | 2 | 0 | 1 | -11.87 | 19.38 | -13.58 | 144.61 | 0.3985 | -584.0 | -547.8 | |
| 0 | 12 | 0 | 6 | -9.82 | 16.55 | -16.41 | 135.95 | 0.4022 | 1002.0 | 866.0 | |
| 0 | 10 | 0 | 6 | -8.81 | 16.22 | -16.74 | 133.56 | 0.3945 | 902.0 | 612.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
