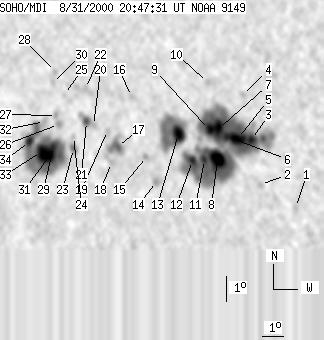

SOHO MDI 2000-08-31 20:47:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 148 | 1125 | 88 | 652 | 13.15 | 356.56 | -31.12 | 76.31 | 0.5189 | 424.2 | 177.4 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-08-31 20:47:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 6 | 0 | 3 | 10.97 | 3.00 | -24.68 | 79.39 | 0.4188 | 531.0 | 377.4 | |
| 0 | 5 | 0 | 3 | 11.79 | 1.37 | -26.31 | 77.96 | 0.4455 | -415.0 | -423.2 | |
| 5 | 607 | 3 | 342 | 13.54 | 0.76 | -26.91 | 74.34 | 0.4589 | 1664.1 | 718.6 | |
| 0 | 4 | 0 | 2 | 15.29 | 0.12 | -27.56 | 70.94 | 0.4741 | 523.0 | 413.9 | |
| 16 | -3 | 9 | -3 | 13.54 | 0.13 | -27.55 | 74.58 | 0.4684 | 1711.4 | 999999 | |
| 4 | -3 | 2 | -3 | 13.59 | 359.62 | -28.06 | 74.66 | 0.4761 | 1669.3 | 999999 | |
| 14 | -3 | 8 | -3 | 13.88 | 359.21 | -28.47 | 74.20 | 0.4828 | 1406.0 | 999999 | |
| 21 | -3 | 12 | -3 | 12.66 | 359.32 | -28.36 | 76.69 | 0.4781 | 1738.4 | 999999 | |
| 9 | -3 | 5 | -3 | 13.82 | 358.80 | -28.87 | 74.48 | 0.4886 | 1227.6 | 999999 | |
| 0 | 4 | 0 | 2 | 15.67 | 358.44 | -29.24 | 70.94 | 0.4996 | -399.0 | -343.1 | |
| 6 | -3 | 4 | -3 | 12.63 | 358.73 | -28.95 | 76.93 | 0.4869 | 982.9 | 999999 | |
| 5 | -3 | 3 | -3 | 12.55 | 358.18 | -29.49 | 77.22 | 0.4947 | 920.6 | 999999 | |
| 17 | 117 | 10 | 67 | 13.58 | 357.40 | -30.28 | 75.42 | 0.5085 | 1263.4 | 282.2 | |
| 0 | 8 | 0 | 5 | 11.63 | 356.62 | -31.05 | 79.40 | 0.5161 | -742.0 | -690.0 | |
| 0 | 4 | 0 | 2 | 12.58 | 356.03 | -31.65 | 77.69 | 0.5262 | 335.0 | 196.8 | |
| 0 | 6 | 0 | 4 | 14.89 | 354.95 | -32.72 | 73.69 | 0.5465 | -592.0 | -502.8 | |
| 5 | 36 | 3 | 21 | 12.88 | 354.60 | -33.08 | 77.43 | 0.5472 | -976.8 | -772.3 | |
| 0 | 13 | 0 | 7 | 12.23 | 354.41 | -33.27 | 78.65 | 0.5490 | -420.0 | -510.7 | |
| 0 | 8 | 0 | 5 | 13.48 | 354.02 | -33.65 | 76.48 | 0.5564 | -546.0 | -740.0 | |
| 0 | 3 | 0 | 2 | 13.63 | 353.32 | -34.36 | 76.37 | 0.5666 | -853.0 | -738.8 | |
| 5 | 16 | 3 | 10 | 13.76 | 352.95 | -34.73 | 76.22 | 0.5719 | -1204.1 | -855.0 | |
| 0 | 20 | 0 | 12 | 15.05 | 352.67 | -35.01 | 74.05 | 0.5784 | -763.0 | -688.8 | |
| 0 | 8 | 0 | 5 | 12.65 | 352.49 | -35.19 | 78.22 | 0.5765 | -1110.0 | -813.0 | |
| 0 | 4 | 0 | 2 | 13.13 | 352.41 | -35.26 | 77.42 | 0.5783 | -609.0 | -485.0 | |
| 0 | 3 | 0 | 2 | 14.74 | 351.68 | -36.00 | 74.82 | 0.5912 | -663.0 | -497.5 | |
| 0 | 6 | 0 | 4 | 13.54 | 351.60 | -36.08 | 76.86 | 0.5902 | -749.0 | -703.4 | |
| 0 | 4 | 0 | 2 | 13.89 | 351.43 | -36.24 | 76.30 | 0.5929 | -253.0 | -440.8 | |
| 0 | 3 | 0 | 2 | 15.62 | 351.05 | -36.63 | 73.52 | 0.6015 | -609.0 | -510.0 | |
| 4 | 229 | 3 | 141 | 12.66 | 351.50 | -36.18 | 78.36 | 0.5903 | -1443.0 | -630.2 | |
| 0 | 3 | 0 | 2 | 15.17 | 350.99 | -36.69 | 74.26 | 0.6014 | -392.0 | -395.5 | |
| 29 | -29 | 18 | -29 | 12.30 | 351.36 | -36.32 | 79.00 | 0.5918 | -1487.3 | 999999 | |
| 0 | 8 | 0 | 5 | 13.61 | 350.88 | -36.80 | 76.87 | 0.6000 | -505.0 | -352.9 | |
| -31 | -29 | -31 | -29 | 12.42 | 350.93 | -36.74 | 78.85 | 0.5977 | 999999 | 999999 | |
| 8 | -29 | 5 | -29 | 12.77 | 350.27 | -37.41 | 78.36 | 0.6071 | -615.8 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
