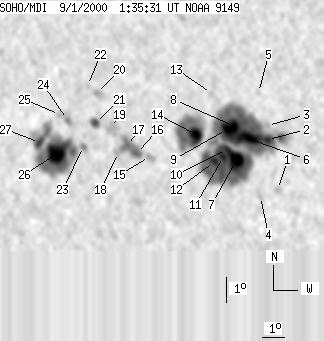

SOHO MDI 2000-09-01 01:35:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 163 | 1138 | 91 | 644 | 13.08 | 356.71 | -28.32 | 75.60 | 0.4781 | 539.9 | 207.9 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-09-01 01:35:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 8 | 0 | 4 | 11.58 | 1.40 | -23.63 | 77.60 | 0.4038 | -244.0 | -269.2 | |
| 5 | 624 | 3 | 344 | 13.52 | 0.77 | -24.27 | 73.20 | 0.4192 | 1591.3 | 731.7 | |
| 0 | 3 | 0 | 2 | 14.07 | 0.71 | -24.33 | 71.95 | 0.4221 | 471.0 | 406.9 | |
| 0 | 4 | 0 | 2 | 11.26 | 0.68 | -24.35 | 78.60 | 0.4143 | -431.0 | -311.7 | |
| 0 | 4 | 0 | 2 | 15.35 | 0.15 | -24.89 | 69.36 | 0.4354 | 402.0 | 285.2 | |
| 22 | -2 | 12 | -2 | 13.51 | 359.88 | -25.16 | 73.64 | 0.4326 | 1790.8 | 999999 | |
| 30 | -2 | 16 | -2 | 12.58 | 359.45 | -25.59 | 75.94 | 0.4364 | 1697.8 | 999999 | |
| 10 | -2 | 5 | -2 | 13.96 | 359.24 | -25.79 | 72.94 | 0.4435 | 1567.8 | 999999 | |
| 12 | -2 | 6 | -2 | 13.82 | 358.90 | -26.13 | 73.40 | 0.4482 | 1340.8 | 999999 | |
| 3 | -2 | 2 | -2 | 13.03 | 358.99 | -26.04 | 75.10 | 0.4444 | 1431.8 | 999999 | |
| 5 | -2 | 3 | -2 | 12.75 | 358.89 | -26.14 | 75.77 | 0.4452 | 1217.9 | 999999 | |
| 6 | -2 | 3 | -2 | 12.53 | 358.51 | -26.52 | 76.39 | 0.4504 | 982.2 | 999999 | |
| 0 | 5 | 0 | 3 | 15.20 | 358.04 | -26.99 | 70.84 | 0.4656 | 250.0 | 109.5 | |
| 15 | 125 | 9 | 70 | 13.54 | 357.53 | -27.51 | 74.55 | 0.4677 | 1293.4 | 306.5 | |
| 0 | 8 | 0 | 4 | 12.56 | 355.54 | -29.49 | 77.22 | 0.4947 | 99.0 | 83.0 | |
| 6 | 44 | 3 | 26 | 12.64 | 354.93 | -30.11 | 77.22 | 0.5039 | -204.7 | -623.4 | |
| 6 | -16 | 3 | -16 | 12.93 | 354.47 | -30.57 | 76.77 | 0.5112 | -1097.1 | 999999 | |
| 0 | 6 | 0 | 4 | 12.63 | 354.09 | -30.95 | 77.45 | 0.5162 | -729.0 | -643.1 | |
| 0 | 25 | 0 | 15 | 13.59 | 353.62 | -31.41 | 75.73 | 0.5248 | -964.0 | -786.0 | |
| 0 | 10 | 0 | 6 | 14.88 | 352.70 | -32.33 | 73.59 | 0.5410 | -914.0 | -779.4 | |
| 5 | 12 | 3 | 7 | 13.73 | 352.84 | -32.20 | 75.66 | 0.5364 | -1032.2 | -775.4 | |
| 0 | 3 | 0 | 2 | 15.17 | 352.22 | -32.82 | 73.23 | 0.5485 | -710.0 | -618.8 | |
| 0 | 6 | 0 | 3 | 12.75 | 352.41 | -32.62 | 77.57 | 0.5406 | -864.0 | -744.5 | |
| 0 | 9 | 0 | 5 | 13.76 | 351.48 | -33.55 | 75.95 | 0.5555 | -488.0 | -499.6 | |
| 0 | 6 | 0 | 4 | 13.93 | 351.06 | -33.97 | 75.74 | 0.5617 | -556.0 | -408.6 | |
| 32 | 236 | 19 | 141 | 12.39 | 351.16 | -33.87 | 78.47 | 0.5577 | -1529.8 | -647.6 | |
| 6 | -26 | 4 | -26 | 12.77 | 350.27 | -34.76 | 77.96 | 0.5707 | -718.9 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
