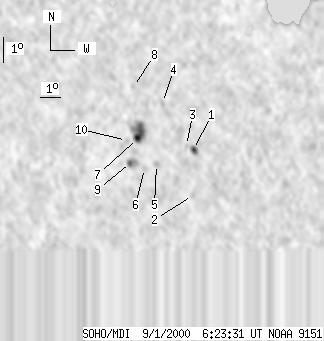

SOHO MDI 2000-09-01 06:23:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7 | 80 | 4 | 51 | 6.38 | 345.03 | -37.36 | 88.95 | 0.6054 | -490.1 | -499.1 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-09-01 06:23:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2 | 8 | 1 | 5 | 6.39 | 347.28 | -35.12 | 89.17 | 0.5739 | 666.1 | 471.1 | |
| 0 | 4 | 0 | 2 | 4.58 | 347.35 | -35.04 | 92.33 | 0.5750 | 529.0 | 353.3 | |
| 0 | 3 | 0 | 2 | 6.52 | 346.92 | -35.47 | 88.91 | 0.5788 | 335.0 | 374.9 | |
| 0 | 3 | 0 | 2 | 8.12 | 345.60 | -36.80 | 86.10 | 0.5966 | 235.0 | 199.6 | |
| 0 | 5 | 0 | 3 | 5.67 | 345.52 | -36.87 | 90.20 | 0.5993 | -762.0 | -738.1 | |
| 0 | 4 | 0 | 3 | 5.47 | 344.94 | -37.45 | 90.45 | 0.6076 | -681.0 | -546.2 | |
| 5 | 36 | 3 | 23 | 6.61 | 344.50 | -37.90 | 88.52 | 0.6126 | -1026.9 | -854.6 | |
| 0 | 2 | 0 | 2 | 8.63 | 344.08 | -38.31 | 85.20 | 0.6173 | 64.0 | 187.2 | |
| 0 | 11 | 0 | 7 | 5.65 | 344.23 | -38.17 | 90.06 | 0.6172 | -901.0 | -788.8 | |
| 0 | 4 | 0 | 2 | 6.49 | 343.95 | -38.44 | 88.66 | 0.6201 | -468.0 | -505.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
