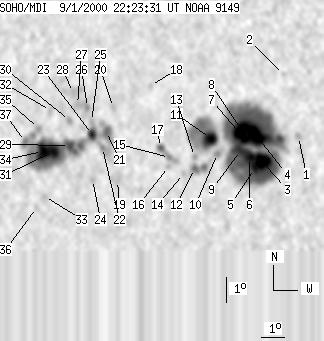

SOHO MDI 2000-09-01 22:23:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 187 | 1223 | 97 | 634 | 13.14 | 356.68 | -16.90 | 68.32 | 0.3048 | 753.3 | 203.3 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-09-01 22:23:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 5 | 0 | 3 | 13.60 | 1.64 | -11.94 | 60.52 | 0.2321 | 723.0 | 582.7 | |
| 0 | 3 | 0 | 2 | 16.04 | 0.88 | -12.71 | 53.55 | 0.2640 | 536.0 | 425.8 | |
| 19 | 611 | 10 | 313 | 12.57 | 0.21 | -13.38 | 66.85 | 0.2467 | 2078.6 | 733.8 | |
| 30 | -3 | 16 | -3 | 13.59 | 359.90 | -13.68 | 63.55 | 0.2579 | 2121.0 | 999999 | |
| 6 | -3 | 3 | -3 | 12.29 | 359.89 | -13.69 | 68.36 | 0.2499 | 1435.1 | 999999 | |
| 12 | -3 | 6 | -3 | 12.72 | 359.66 | -13.92 | 67.07 | 0.2560 | 1604.4 | 999999 | |
| 6 | -3 | 3 | -3 | 13.42 | 359.45 | -14.13 | 64.82 | 0.2635 | 1912.7 | 999999 | |
| 25 | -3 | 13 | -3 | 13.81 | 359.26 | -14.32 | 63.74 | 0.2690 | 1748.4 | 999999 | |
| 18 | -3 | 9 | -3 | 12.98 | 359.27 | -14.31 | 66.63 | 0.2636 | 1301.0 | 999999 | |
| 0 | 10 | 0 | 5 | 12.83 | 358.32 | -15.26 | 68.31 | 0.2774 | 931.0 | 793.3 | |
| 13 | 119 | 7 | 61 | 13.41 | 357.99 | -15.59 | 66.75 | 0.2858 | 1463.1 | 469.0 | |
| 0 | 37 | 0 | 19 | 12.21 | 357.40 | -16.18 | 71.38 | 0.2887 | 981.0 | 689.3 | |
| 0 | 4 | 0 | 2 | 12.68 | 357.37 | -16.21 | 69.84 | 0.2914 | 707.0 | 540.7 | |
| 0 | 5 | 0 | 2 | 12.00 | 356.96 | -16.63 | 72.48 | 0.2948 | 140.0 | 206.5 | |
| 0 | 11 | 0 | 5 | 12.61 | 356.33 | -17.26 | 71.07 | 0.3074 | 655.0 | 470.2 | |
| 0 | 4 | 0 | 2 | 12.25 | 356.31 | -17.27 | 72.20 | 0.3061 | 339.0 | 250.0 | |
| 3 | 12 | 1 | 6 | 12.99 | 355.92 | -17.66 | 70.25 | 0.3155 | 681.4 | 446.3 | |
| 0 | 4 | 0 | 2 | 15.42 | 355.29 | -18.29 | 63.84 | 0.3385 | 542.0 | 449.9 | |
| 0 | 16 | 0 | 9 | 11.62 | 354.20 | -19.39 | 75.59 | 0.3372 | -739.0 | -455.3 | |
| 0 | 7 | 0 | 4 | 14.48 | 353.79 | -19.79 | 67.84 | 0.3556 | -618.0 | -574.3 | |
| 4 | 16 | 2 | 8 | 13.53 | 353.57 | -20.01 | 70.60 | 0.3542 | -1377.8 | -1145.3 | |
| 0 | 12 | 0 | 6 | 12.89 | 353.46 | -20.12 | 72.44 | 0.3533 | -840.0 | -852.9 | |
| 7 | 22 | 4 | 11 | 13.38 | 352.98 | -20.60 | 71.42 | 0.3627 | -1337.5 | -969.8 | |
| 0 | 5 | 0 | 3 | 11.61 | 353.13 | -20.45 | 76.17 | 0.3540 | -600.0 | -551.4 | |
| 0 | 8 | 0 | 4 | 13.89 | 352.89 | -20.69 | 70.13 | 0.3662 | -991.0 | -888.0 | |
| 0 | 9 | 0 | 5 | 14.44 | 352.67 | -20.91 | 68.87 | 0.3722 | -1013.0 | -914.8 | |
| 0 | 12 | 0 | 6 | 14.54 | 352.22 | -21.36 | 68.96 | 0.3794 | -920.0 | -829.3 | |
| 0 | 27 | 0 | 14 | 15.00 | 352.00 | -21.58 | 67.96 | 0.3849 | -832.0 | -744.0 | |
| 5 | 210 | 3 | 113 | 12.90 | 352.03 | -21.55 | 73.28 | 0.3754 | -1405.1 | -728.1 | |
| 0 | 7 | 0 | 4 | 13.89 | 351.94 | -21.64 | 70.80 | 0.3807 | -878.0 | -676.8 | |
| 16 | -29 | 8 | -29 | 12.64 | 351.36 | -22.22 | 74.34 | 0.3849 | -1693.3 | 999999 | |
| 0 | 5 | 0 | 3 | 14.25 | 351.07 | -22.51 | 70.48 | 0.3954 | -427.0 | -537.0 | |
| 0 | 4 | 0 | 2 | 10.85 | 351.13 | -22.46 | 79.05 | 0.3838 | -533.0 | -514.9 | |
| 23 | -29 | 12 | -29 | 12.61 | 350.89 | -22.70 | 74.64 | 0.3921 | -1359.0 | 999999 | |
| 0 | 7 | 0 | 4 | 13.51 | 350.62 | -22.96 | 72.55 | 0.3993 | -821.0 | -733.1 | |
| 0 | 5 | 0 | 2 | 10.40 | 350.82 | -22.77 | 80.30 | 0.3878 | -721.0 | -634.7 | |
| 0 | 26 | 0 | 14 | 12.97 | 350.11 | -23.47 | 74.14 | 0.4053 | -820.0 | -619.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
