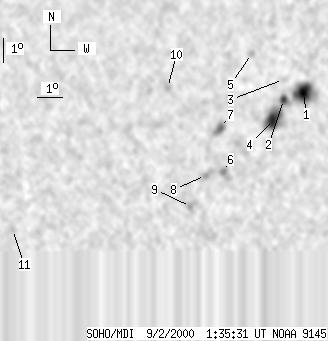

SOHO MDI 2000-09-02 01:35:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 34 | 201 | 18 | 106 | -9.84 | 20.82 | 9.00 | 207.97 | 0.3345 | -1238.7 | -487.4 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-09-02 01:35:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12 | 64 | 6 | 34 | -8.76 | 22.66 | 10.84 | 214.23 | 0.3319 | -1628.0 | -843.7 | |
| 6 | 14 | 3 | 7 | -9.03 | 21.86 | 10.04 | 211.77 | 0.3285 | -1010.3 | -771.1 | |
| 0 | 4 | 0 | 2 | -8.21 | 21.84 | 10.02 | 213.08 | 0.3169 | -437.0 | -415.3 | |
| 16 | 52 | 9 | 27 | -9.84 | 21.48 | 9.66 | 209.55 | 0.3368 | -1296.0 | -813.3 | |
| 0 | 5 | 0 | 3 | -7.13 | 20.53 | 8.71 | 211.37 | 0.2900 | 348.0 | 436.0 | |
| 0 | 15 | 0 | 8 | -11.95 | 19.52 | 7.70 | 201.83 | 0.3542 | -1201.0 | -822.6 | |
| 0 | 16 | 0 | 9 | -10.13 | 19.35 | 7.53 | 203.47 | 0.3254 | 1193.0 | 825.0 | |
| 0 | 8 | 0 | 4 | -12.10 | 18.80 | 6.98 | 199.79 | 0.3523 | -872.0 | -696.9 | |
| 0 | 10 | 0 | 5 | -13.39 | 18.23 | 6.40 | 197.16 | 0.3693 | 861.0 | 581.4 | |
| 0 | 8 | 0 | 4 | -8.46 | 17.20 | 5.38 | 198.97 | 0.2866 | 460.0 | 431.3 | |
| 0 | 5 | 0 | 3 | -14.31 | 11.03 | -0.79 | 177.91 | 0.3689 | 569.0 | 405.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
