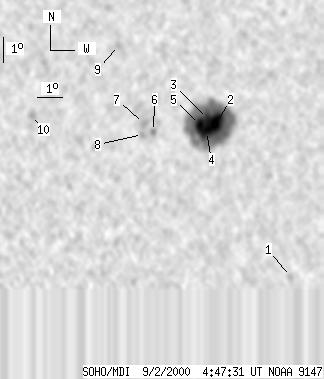

SOHO MDI 2000-09-02 04:47:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 56 | 326 | 29 | 165 | 5.38 | 359.69 | -10.37 | 99.87 | 0.1834 | 1767.2 | 698.8 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-09-02 04:47:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 5 | 0 | 3 | -0.49 | 3.39 | -6.67 | 138.98 | 0.1777 | -478.0 | -521.5 | |
| 20 | 285 | 10 | 143 | 5.52 | 0.41 | -9.65 | 99.54 | 0.1699 | 2143.8 | 717.0 | |
| 8 | -2 | 4 | -2 | 5.67 | 0.05 | -10.01 | 98.32 | 0.1756 | 1599.8 | 999999 | |
| 15 | -2 | 8 | -2 | 5.16 | 0.02 | -10.04 | 101.14 | 0.1778 | 1748.9 | 999999 | |
| 13 | -2 | 7 | -2 | 5.43 | 359.73 | -10.33 | 99.36 | 0.1817 | 1535.4 | 999999 | |
| 0 | 5 | 0 | 3 | 5.11 | 357.89 | -12.17 | 99.25 | 0.2137 | 1077.0 | 842.8 | |
| 0 | 8 | 0 | 4 | 5.41 | 357.48 | -12.58 | 97.55 | 0.2197 | 904.0 | 821.2 | |
| 0 | 5 | 0 | 3 | 4.98 | 357.45 | -12.61 | 99.47 | 0.2215 | 755.0 | 725.3 | |
| 0 | 9 | 0 | 4 | 8.44 | 356.38 | -13.68 | 83.98 | 0.2363 | 856.0 | 701.1 | |
| 0 | 9 | 0 | 5 | 5.58 | 352.91 | -17.15 | 94.53 | 0.2957 | 853.0 | 709.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
