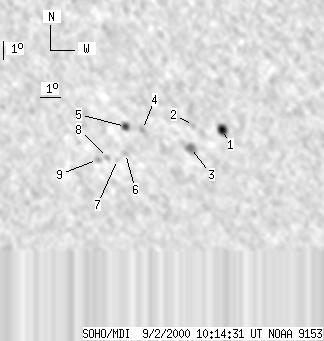

SOHO MDI 2000-09-02 10:14:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10 | 66 | 7 | 42 | -32.28 | 356.45 | -10.61 | 166.27 | 0.6560 | -193.5 | -140.5 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-09-02 10:14:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6 | 16 | 4 | 10 | -31.78 | 359.05 | -8.00 | 169.33 | 0.6418 | -890.1 | -579.6 | |
| 0 | 9 | 0 | 6 | -31.61 | 357.72 | -9.34 | 167.54 | 0.6431 | -510.0 | -595.0 | |
| 0 | 12 | 0 | 8 | -32.73 | 357.46 | -9.60 | 167.65 | 0.6583 | -851.0 | -667.5 | |
| 0 | 5 | 0 | 3 | -31.87 | 355.29 | -11.77 | 164.59 | 0.6542 | 560.0 | 509.9 | |
| 4 | 10 | 3 | 6 | -31.74 | 354.50 | -12.55 | 163.56 | 0.6554 | 558.5 | 483.2 | |
| 0 | 3 | 0 | 2 | -33.13 | 354.31 | -12.75 | 164.01 | 0.6733 | 463.0 | 489.2 | |
| 0 | 2 | 0 | 1 | -33.45 | 353.87 | -13.19 | 163.66 | 0.6788 | 522.0 | 528.3 | |
| 0 | 4 | 0 | 3 | -33.36 | 353.40 | -13.66 | 163.07 | 0.6794 | 580.0 | 498.6 | |
| 0 | 5 | 0 | 3 | -33.48 | 352.90 | -14.16 | 162.55 | 0.6828 | 533.0 | 458.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
