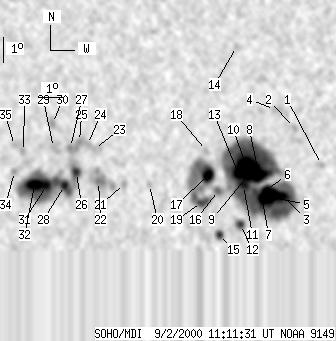

SOHO MDI 2000-09-02 11:11:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 185 | 1218 | 94 | 618 | 13.22 | 357.21 | -9.32 | 53.56 | 0.1936 | 1006.7 | 193.3 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-09-02 11:11:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 7 | 0 | 4 | 13.86 | 2.71 | -3.83 | 29.25 | 0.1332 | 665.0 | 589.3 | |
| 0 | 5 | 0 | 3 | 15.31 | 1.58 | -4.95 | 30.56 | 0.1645 | 519.0 | 423.2 | |
| 9 | 609 | 5 | 305 | 12.58 | 1.20 | -5.34 | 44.08 | 0.1311 | 1603.8 | 738.6 | |
| 0 | 10 | 0 | 5 | 16.02 | 0.75 | -5.79 | 32.31 | 0.1822 | 575.0 | 522.0 | |
| 16 | -3 | 8 | -3 | 12.54 | 0.75 | -5.78 | 46.57 | 0.1360 | 1874.8 | 999999 | |
| 8 | -3 | 4 | -3 | 12.85 | 0.50 | -6.03 | 46.11 | 0.1428 | 1635.1 | 999999 | |
| 12 | -3 | 6 | -3 | 12.45 | 0.35 | -6.18 | 48.91 | 0.1402 | 1880.0 | 999999 | |
| 27 | -3 | 13 | -3 | 13.51 | 0.16 | -6.37 | 44.40 | 0.1549 | 2054.8 | 999999 | |
| 8 | -3 | 4 | -3 | 13.39 | 359.72 | -6.82 | 46.87 | 0.1589 | 2167.5 | 999999 | |
| 19 | -3 | 10 | -3 | 13.86 | 359.63 | -6.91 | 45.11 | 0.1656 | 2020.6 | 999999 | |
| 10 | -3 | 5 | -3 | 12.99 | 359.57 | -6.97 | 49.40 | 0.1564 | 1468.0 | 999999 | |
| 5 | 13 | 2 | 7 | 11.46 | 359.49 | -7.05 | 58.18 | 0.1421 | 787.0 | 485.0 | |
| 10 | -3 | 5 | -3 | 13.46 | 359.35 | -7.18 | 48.00 | 0.1644 | 1793.7 | 999999 | |
| 0 | 6 | 0 | 3 | 18.50 | 359.08 | -7.45 | 32.04 | 0.2328 | 541.0 | 385.6 | |
| 4 | 11 | 2 | 6 | 11.05 | 358.65 | -7.88 | 63.28 | 0.1514 | -650.2 | -356.4 | |
| 0 | 10 | 0 | 5 | 12.78 | 358.56 | -7.97 | 54.12 | 0.1678 | 1184.0 | 941.1 | |
| 18 | 150 | 9 | 76 | 13.40 | 358.13 | -8.40 | 52.56 | 0.1798 | 1487.9 | 631.9 | |
| 0 | 5 | 0 | 3 | 14.35 | 358.02 | -8.52 | 48.89 | 0.1914 | 435.0 | 368.8 | |
| 3 | -17 | 2 | -17 | 12.29 | 357.89 | -8.65 | 58.61 | 0.1729 | 1180.6 | 999999 | |
| 0 | 5 | 0 | 2 | 12.96 | 355.74 | -10.80 | 60.81 | 0.2101 | 616.0 | 535.2 | |
| 0 | 7 | 0 | 4 | 12.97 | 354.71 | -11.82 | 62.79 | 0.2255 | -639.0 | -622.2 | |
| 0 | 65 | 0 | 33 | 13.02 | 353.64 | -12.90 | 64.43 | 0.2422 | -1197.0 | -918.6 | |
| 0 | 1 | 0 | 0 | 14.32 | 353.40 | -13.14 | 60.10 | 0.2552 | -782.0 | -782.0 | |
| 0 | 6 | 0 | 3 | 14.47 | 353.10 | -13.44 | 60.10 | 0.2607 | -763.0 | -677.2 | |
| 0 | 11 | 0 | 6 | 14.58 | 352.76 | -13.78 | 60.31 | 0.2665 | -958.0 | -848.0 | |
| 6 | 228 | 3 | 117 | 13.35 | 352.71 | -13.83 | 64.64 | 0.2585 | -1300.3 | -884.7 | |
| 0 | 13 | 0 | 7 | 14.33 | 352.40 | -14.14 | 61.72 | 0.2699 | -963.0 | -968.8 | |
| 5 | -26 | 3 | -26 | 12.83 | 352.24 | -14.30 | 67.18 | 0.2624 | -1538.1 | 999999 | |
| 0 | 18 | 0 | 9 | 14.31 | 351.69 | -14.85 | 62.85 | 0.2803 | -781.0 | -730.9 | |
| 0 | 10 | 0 | 5 | 15.26 | 351.58 | -14.96 | 60.00 | 0.2888 | -776.0 | -663.4 | |
| 8 | -26 | 4 | -26 | 12.80 | 351.49 | -15.04 | 68.18 | 0.2738 | -1718.2 | 999999 | |
| 17 | -26 | 9 | -26 | 12.83 | 350.99 | -15.54 | 68.68 | 0.2818 | -1584.7 | 999999 | |
| 0 | 7 | 0 | 4 | 14.11 | 350.44 | -16.09 | 65.14 | 0.2976 | -715.0 | -616.6 | |
| 0 | 10 | 0 | 5 | 13.31 | 350.12 | -16.42 | 68.04 | 0.2978 | -650.0 | -577.6 | |
| 0 | 11 | 0 | 6 | 14.34 | 350.05 | -16.49 | 64.92 | 0.3050 | -599.0 | -581.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
