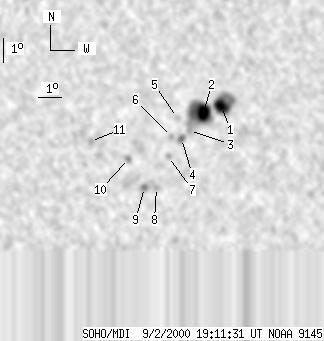

SOHO MDI 2000-09-02 19:11:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 38 | 189 | 21 | 104 | -9.47 | 21.88 | 19.74 | 229.91 | 0.4377 | -1311.7 | -555.2 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-09-02 19:11:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 19 | 56 | 10 | 31 | -8.94 | 22.89 | 20.75 | 232.30 | 0.4443 | -1261.1 | -594.9 | |
| 19 | 85 | 11 | 47 | -9.15 | 22.14 | 20.00 | 230.88 | 0.4371 | -1554.5 | -784.9 | |
| 0 | 4 | 0 | 2 | -9.87 | 21.59 | 19.45 | 228.83 | 0.4377 | -628.0 | -488.8 | |
| 0 | 7 | 0 | 4 | -10.18 | 21.27 | 19.14 | 227.81 | 0.4373 | -550.0 | -445.7 | |
| 0 | 6 | 0 | 3 | -9.31 | 21.05 | 18.92 | 229.01 | 0.4256 | -462.0 | -368.2 | |
| 0 | 4 | 0 | 2 | -10.08 | 20.84 | 18.71 | 227.34 | 0.4313 | 416.0 | 275.3 | |
| 0 | 5 | 0 | 3 | -10.90 | 20.77 | 18.63 | 225.83 | 0.4392 | 513.0 | 433.4 | |
| 0 | 5 | 0 | 3 | -12.17 | 20.35 | 18.21 | 223.15 | 0.4487 | -674.0 | -566.3 | |
| 0 | 6 | 0 | 3 | -12.15 | 19.84 | 17.71 | 222.37 | 0.4431 | -919.0 | -703.9 | |
| 0 | 5 | 0 | 3 | -10.91 | 19.09 | 16.96 | 223.09 | 0.4210 | 574.0 | 572.3 | |
| 0 | 6 | 0 | 3 | -10.16 | 17.47 | 15.33 | 221.48 | 0.3947 | 746.0 | 565.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
