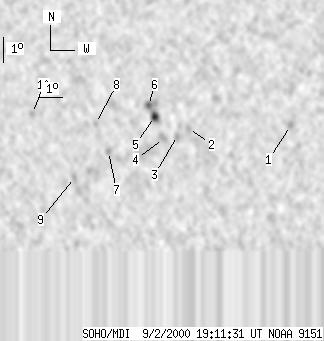

SOHO MDI 2000-09-02 19:11:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4 | 75 | 2 | 42 | 6.53 | 344.64 | -17.49 | 91.16 | 0.2999 | -878.3 | -552.0 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-09-02 19:11:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 7 | 0 | 4 | 6.85 | 350.40 | -11.73 | 91.16 | 0.2028 | 878.0 | 677.6 | |
| 0 | 7 | 0 | 4 | 6.61 | 346.26 | -15.88 | 91.30 | 0.2730 | -428.0 | -485.5 | |
| 0 | 6 | 0 | 3 | 6.32 | 345.81 | -16.32 | 92.24 | 0.2807 | -771.0 | -654.3 | |
| 0 | 9 | 0 | 5 | 6.18 | 345.24 | -16.89 | 92.58 | 0.2904 | -701.0 | -586.4 | |
| 4 | 11 | 2 | 6 | 7.03 | 344.84 | -17.29 | 89.60 | 0.2963 | -1186.0 | -938.2 | |
| 0 | 14 | 0 | 8 | 7.45 | 344.57 | -17.56 | 88.16 | 0.3006 | -910.0 | -793.7 | |
| 0 | 5 | 0 | 3 | 5.58 | 342.98 | -19.15 | 93.84 | 0.3287 | -676.0 | -615.4 | |
| 0 | 3 | 0 | 2 | 6.66 | 342.39 | -19.74 | 90.47 | 0.3369 | -680.0 | -590.4 | |
| 0 | 7 | 0 | 4 | 4.50 | 341.59 | -20.54 | 96.48 | 0.3536 | -789.0 | -593.4 | |
| 0 | 6 | 0 | 3 | 6.93 | 339.71 | -22.42 | 89.38 | 0.3803 | -750.0 | -559.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
