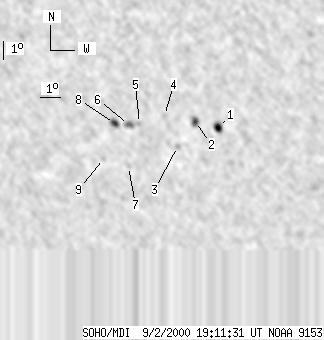

SOHO MDI 2000-09-02 19:11:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14 | 62 | 9 | 39 | -32.14 | 356.30 | -5.83 | 172.31 | 0.6425 | -215.4 | -34.8 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-09-02 19:11:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6 | 13 | 4 | 8 | -31.96 | 358.99 | -3.14 | 175.79 | 0.6358 | -782.7 | -551.5 | |
| 4 | 10 | 2 | 7 | -31.67 | 357.94 | -4.20 | 174.33 | 0.6331 | -856.8 | -636.8 | |
| 0 | 5 | 0 | 3 | -32.95 | 357.03 | -5.10 | 173.40 | 0.6515 | -585.0 | -427.5 | |
| 0 | 4 | 0 | 2 | -31.38 | 356.52 | -5.61 | 172.37 | 0.6314 | -490.0 | -373.2 | |
| 0 | 3 | 0 | 2 | -31.80 | 355.33 | -6.80 | 170.91 | 0.6394 | 637.0 | 555.3 | |
| 0 | 9 | 0 | 6 | -31.86 | 354.81 | -7.32 | 170.25 | 0.6413 | 627.0 | 542.3 | |
| 0 | 3 | 0 | 2 | -34.03 | 354.63 | -7.50 | 170.67 | 0.6698 | 314.0 | 351.9 | |
| 4 | 10 | 3 | 6 | -31.82 | 354.16 | -7.97 | 169.40 | 0.6423 | 822.2 | 561.8 | |
| 0 | 5 | 0 | 3 | -33.63 | 353.47 | -8.66 | 169.14 | 0.6674 | 403.0 | 367.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
