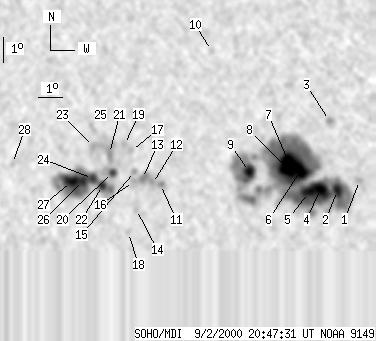

SOHO MDI 2000-09-02 20:47:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 166 | 1128 | 83 | 563 | 13.23 | 357.90 | -3.35 | 28.69 | 0.1193 | 863.4 | 262.9 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-09-02 20:47:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 6 | 0 | 3 | 13.05 | 2.58 | 1.33 | 347.40 | 0.1043 | 446.0 | 357.6 | |
| 11 | 808 | 5 | 403 | 12.66 | 1.70 | 0.45 | 355.41 | 0.0953 | 1484.5 | 674.5 | |
| 0 | 5 | 0 | 2 | 15.42 | 1.38 | 0.13 | 359.15 | 0.1431 | 923.0 | 792.0 | |
| 34 | -2 | 17 | -2 | 12.74 | 1.01 | -0.24 | 2.41 | 0.0964 | 1812.6 | 999999 | |
| -4 | -2 | -4 | -2 | 12.58 | 0.53 | -0.72 | 7.50 | 0.0944 | 999999 | 999999 | |
| 22 | -2 | 11 | -2 | 13.45 | 0.21 | -1.04 | 9.31 | 0.1102 | 1937.7 | 999999 | |
| 40 | -2 | 20 | -2 | 13.80 | 359.72 | -1.53 | 12.78 | 0.1178 | 2091.4 | 999999 | |
| -7 | -2 | -7 | -2 | 13.48 | 359.72 | -1.53 | 13.40 | 0.1125 | 999999 | 999999 | |
| 14 | -2 | 7 | -2 | 13.40 | 358.15 | -3.10 | 26.09 | 0.1203 | 1433.2 | 999999 | |
| 0 | 5 | 0 | 2 | 18.18 | 356.50 | -4.75 | 22.45 | 0.2069 | 659.0 | 533.1 | |
| 0 | 9 | 0 | 4 | 12.85 | 354.56 | -6.69 | 49.03 | 0.1511 | -1025.0 | -848.4 | |
| 0 | 3 | 0 | 1 | 12.88 | 354.24 | -7.01 | 50.17 | 0.1557 | -852.0 | -840.7 | |
| 0 | 14 | 0 | 7 | 13.07 | 353.82 | -7.43 | 50.79 | 0.1632 | -1160.0 | -1035.8 | |
| 0 | 5 | 0 | 2 | 11.85 | 353.62 | -7.63 | 57.91 | 0.1542 | -725.0 | -584.5 | |
| 0 | 5 | 0 | 2 | 13.34 | 353.49 | -7.76 | 50.70 | 0.1705 | -949.0 | -724.6 | |
| 0 | 14 | 0 | 7 | 12.95 | 353.46 | -7.79 | 52.68 | 0.1668 | -875.0 | -679.8 | |
| 0 | 5 | 0 | 3 | 14.17 | 353.34 | -7.91 | 47.59 | 0.1816 | -841.0 | -673.1 | |
| 0 | 4 | 0 | 2 | 10.94 | 353.32 | -7.93 | 64.11 | 0.1513 | -590.0 | -488.8 | |
| 0 | 6 | 0 | 3 | 14.40 | 353.05 | -8.20 | 47.65 | 0.1879 | -827.0 | -703.4 | |
| 5 | 23 | 3 | 12 | 13.29 | 352.60 | -8.65 | 53.89 | 0.1821 | -1119.5 | -885.4 | |
| 0 | 20 | 0 | 10 | 14.04 | 352.45 | -8.80 | 51.09 | 0.1917 | -1126.0 | -930.2 | |
| 5 | 178 | 3 | 90 | 12.77 | 352.21 | -9.04 | 57.42 | 0.1827 | -1364.2 | -852.7 | |
| 0 | 6 | 0 | 3 | 14.30 | 351.78 | -9.47 | 51.99 | 0.2033 | -1228.0 | -1022.7 | |
| 8 | -22 | 4 | -22 | 13.04 | 351.79 | -9.46 | 57.32 | 0.1911 | -1541.9 | 999999 | |
| 0 | 9 | 0 | 5 | 15.13 | 351.66 | -9.59 | 49.16 | 0.2135 | -663.0 | -542.9 | |
| 12 | -22 | 6 | -22 | 12.95 | 351.43 | -9.82 | 58.64 | 0.1956 | -1720.9 | 999999 | |
| 15 | -22 | 7 | -22 | 12.90 | 350.94 | -10.31 | 60.02 | 0.2024 | -1592.9 | 999999 | |
| 0 | 3 | 0 | 2 | 13.55 | 348.48 | -12.77 | 62.26 | 0.2439 | -615.0 | -546.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
