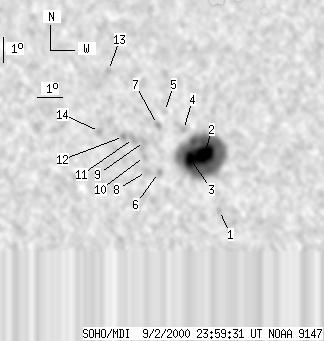

SOHO MDI 2000-09-02 23:59:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 47 | 340 | 23 | 170 | 5.67 | 359.51 | 0.02 | 180.23 | 0.0331 | 1868.4 | 703.6 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-09-02 23:59:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 6 | 0 | 3 | 3.43 | 0.75 | 1.26 | 198.27 | 0.0702 | 653.0 | 525.9 | |
| 30 | 261 | 15 | 130 | 5.63 | 0.16 | 0.67 | 202.56 | 0.0305 | 2079.2 | 750.5 | |
| 17 | -2 | 8 | -2 | 5.47 | 359.61 | 0.12 | 183.85 | 0.0310 | 1856.2 | 999999 | |
| 0 | 5 | 0 | 3 | 6.61 | 359.33 | -0.16 | 166.05 | 0.0113 | 832.0 | 709.0 | |
| 0 | 3 | 0 | 2 | 7.31 | 358.58 | -0.91 | 85.00 | 0.0159 | -426.0 | -312.5 | |
| 0 | 5 | 0 | 3 | 4.92 | 358.35 | -1.14 | 153.84 | 0.0452 | 696.0 | 516.5 | |
| 0 | 6 | 0 | 3 | 6.80 | 358.30 | -1.18 | 110.14 | 0.0220 | -661.0 | -515.3 | |
| 0 | 11 | 0 | 5 | 4.96 | 357.88 | -1.61 | 144.76 | 0.0488 | 884.0 | 672.5 | |
| 0 | 15 | 0 | 8 | 6.14 | 357.79 | -1.70 | 123.08 | 0.0353 | 870.0 | 716.6 | |
| 0 | 5 | 0 | 2 | 5.55 | 357.80 | -1.69 | 135.01 | 0.0418 | 832.0 | 707.8 | |
| 0 | 9 | 0 | 5 | 6.25 | 357.36 | -2.13 | 114.85 | 0.0409 | 949.0 | 850.9 | |
| 0 | 5 | 0 | 2 | 6.33 | 356.96 | -2.53 | 109.77 | 0.0467 | 1024.0 | 834.0 | |
| 0 | 4 | 0 | 2 | 8.91 | 356.35 | -3.14 | 61.43 | 0.0618 | 738.0 | 611.8 | |
| 0 | 5 | 0 | 2 | 6.52 | 356.01 | -3.47 | 101.56 | 0.0618 | 705.0 | 649.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
