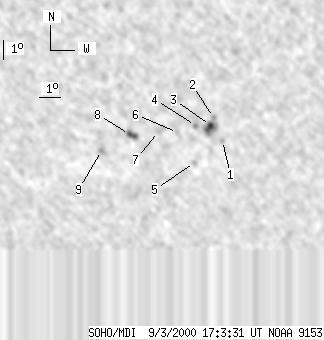

SOHO MDI 2000-09-03 17:03:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3 | 72 | 2 | 46 | -31.79 | 356.58 | 6.49 | 188.68 | 0.6390 | -554.3 | -119.1 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-09-03 17:03:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 4 | 0 | 2 | -32.22 | 358.70 | 8.61 | 191.28 | 0.6492 | -575.0 | -433.8 | |
| 0 | 5 | 0 | 3 | -31.05 | 358.17 | 8.08 | 191.02 | 0.6325 | -533.0 | -569.1 | |
| 3 | 22 | 2 | 14 | -31.45 | 358.07 | 7.97 | 190.74 | 0.6375 | -1014.4 | -717.4 | |
| 0 | 4 | 0 | 3 | -31.43 | 357.37 | 7.28 | 189.83 | 0.6356 | -471.0 | -334.1 | |
| 0 | 5 | 0 | 3 | -33.33 | 357.48 | 7.39 | 189.39 | 0.6606 | -476.0 | -437.6 | |
| 0 | 5 | 0 | 3 | -31.77 | 356.56 | 6.47 | 188.66 | 0.6384 | -130.0 | -172.0 | |
| 0 | 10 | 0 | 7 | -31.71 | 355.67 | 5.58 | 187.50 | 0.6359 | 474.0 | 354.3 | |
| 0 | 12 | 0 | 8 | -31.85 | 354.34 | 4.24 | 185.70 | 0.6356 | 1011.0 | 641.0 | |
| 0 | 5 | 0 | 3 | -32.65 | 353.07 | 2.97 | 183.90 | 0.6450 | 867.0 | 787.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
