SOHO MDI 2000-09-03 17:35:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12 | 113 | 5 | 57 | 8.67 | 341.23 | -8.57 | 82.31 | 0.1529 | 632.0 | -123.8 | |
|
previous
or next observation for the same group /

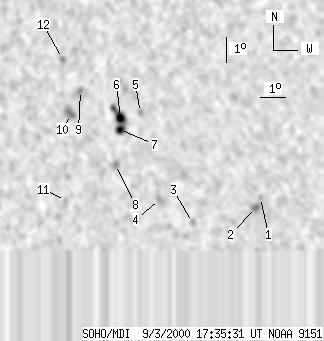

back to the solar disc SOHO MDI 2000-09-03 17:35:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 2 | 0 | 1 | 6.65 | 346.67 | -3.13 | 100.67 | 0.0555 | -536.0 | -522.4 | |
| 0 | 8 | 0 | 4 | 6.25 | 346.47 | -3.33 | 106.48 | 0.0604 | -1137.0 | -996.4 | |
| 0 | 6 | 0 | 3 | 5.64 | 343.99 | -5.81 | 105.17 | 0.1049 | -582.0 | -622.7 | |
| 0 | 12 | 0 | 6 | 6.52 | 342.67 | -7.13 | 95.37 | 0.1245 | -732.0 | -615.1 | |
| 0 | 5 | 0 | 3 | 9.92 | 341.84 | -7.96 | 70.63 | 0.1452 | 842.0 | 665.8 | |
| 7 | 39 | 3 | 19 | 9.71 | 341.04 | -8.76 | 73.47 | 0.1573 | 1166.0 | 682.6 | |
| 5 | -6 | 2 | -6 | 9.24 | 341.01 | -8.79 | 76.45 | 0.1558 | 953.8 | 999999 | |
| 0 | 6 | 0 | 3 | 7.86 | 340.89 | -8.91 | 85.39 | 0.1547 | -881.0 | -843.5 | |
| 0 | 6 | 0 | 3 | 10.74 | 339.39 | -10.41 | 70.45 | 0.1892 | -959.0 | -694.6 | |
| 0 | 15 | 0 | 8 | 9.79 | 339.02 | -10.78 | 75.81 | 0.1910 | -968.0 | -832.6 | |
| 0 | 9 | 0 | 4 | 6.41 | 338.91 | -10.89 | 93.74 | 0.1890 | -744.0 | -604.2 | |
| 0 | 5 | 0 | 3 | 11.98 | 338.61 | -11.19 | 65.89 | 0.2089 | 788.0 | 578.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
