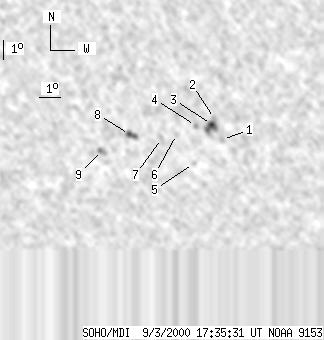

SOHO MDI 2000-09-03 17:35:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2 | 56 | 1 | 36 | -31.89 | 356.37 | 6.57 | 188.76 | 0.6408 | -431.8 | -101.6 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-09-03 17:35:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 4 | 0 | 3 | -32.18 | 358.68 | 8.88 | 191.65 | 0.6493 | -575.0 | -401.5 | |
| 0 | 2 | 0 | 1 | -31.11 | 358.21 | 8.41 | 191.43 | 0.6341 | -733.0 | -614.8 | |
| 2 | 16 | 1 | 10 | -31.40 | 358.10 | 8.30 | 191.17 | 0.6377 | -1032.4 | -790.9 | |
| 0 | 4 | 0 | 3 | -31.44 | 357.36 | 7.56 | 190.19 | 0.6364 | -471.0 | -409.0 | |
| 0 | 3 | 0 | 2 | -33.38 | 357.43 | 7.63 | 189.67 | 0.6619 | -401.0 | -431.3 | |
| 0 | 4 | 0 | 2 | -31.88 | 356.51 | 6.71 | 188.94 | 0.6403 | -276.0 | -165.8 | |
| 0 | 4 | 0 | 3 | -32.07 | 355.82 | 6.02 | 187.99 | 0.6415 | 127.0 | 12.2 | |
| 0 | 12 | 0 | 8 | -31.85 | 354.32 | 4.52 | 186.06 | 0.6361 | 1011.0 | 689.2 | |
| 0 | 7 | 0 | 4 | -32.65 | 353.05 | 3.25 | 184.26 | 0.6453 | 867.0 | 735.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
