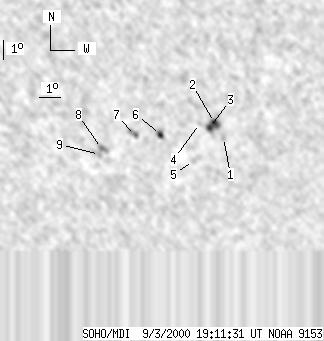

SOHO MDI 2000-09-03 19:11:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9 | 65 | 6 | 43 | -32.13 | 356.19 | 7.27 | 189.61 | 0.6455 | -363.7 | -64.0 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-09-03 19:11:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 4 | 0 | 2 | -32.20 | 358.65 | 9.73 | 192.72 | 0.6520 | -523.0 | -375.6 | |
| 3 | 21 | 2 | 14 | -31.43 | 358.15 | 9.23 | 192.38 | 0.6406 | -954.5 | -700.7 | |
| 3 | -2 | 2 | -2 | -31.67 | 357.94 | 9.02 | 192.02 | 0.6432 | -839.1 | 999999 | |
| 0 | 2 | 0 | 2 | -31.46 | 357.45 | 8.53 | 191.47 | 0.6391 | -628.0 | -598.0 | |
| 0 | 8 | 0 | 5 | -33.35 | 357.35 | 8.43 | 190.68 | 0.6633 | -615.0 | -535.2 | |
| 3 | 9 | 2 | 6 | -31.98 | 355.68 | 6.76 | 188.98 | 0.6418 | 443.6 | 351.7 | |
| 0 | 9 | 0 | 6 | -32.02 | 354.52 | 5.60 | 187.46 | 0.6400 | 617.0 | 705.8 | |
| 0 | 9 | 0 | 6 | -32.66 | 352.97 | 4.05 | 185.30 | 0.6463 | 887.0 | 715.5 | |
| 0 | 3 | 0 | 2 | -32.97 | 352.89 | 3.97 | 185.14 | 0.6503 | 669.0 | 521.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
