groupProj. UProj. WSCorr. UCorr. WS BLLCMPos. angler MU MP

9149 177 859 93 448 13.41 357.75 15.88 294.05 0.2912 816.9 310.5


previous   or   next   observation for the same group / back to the solar disc

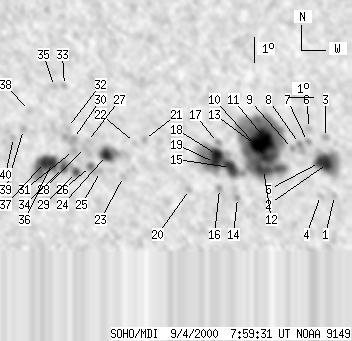

SOHO MDI 2000-09-04 07:59:31 UT
No observation available


spotProj. UProj. WSCorr. UCorr. WSBLLCMPos. angler MU MP

1 0 3 0 2 11.62 2.70 20.83 283.60 0.3599 698.0 622.0
2 21 77 11 41 12.89 2.50 20.63 287.18 0.3611 1464.8 746.4
3 0 7 0 4 13.92 2.51 20.64 289.92 0.3654 767.0 604.1
4 0 7 0 4 11.64 2.10 20.23 283.97 0.3505 531.0 464.0
5 -2 -2 -2 -2 12.94 2.16 20.29 287.55 0.3560 999999 999999
6 0 5 0 3 14.30 1.85 19.98 291.46 0.3573 763.0 711.0
7 0 6 0 3 13.79 1.72 19.85 290.19 0.3529 782.0 762.4
8 0 11 0 6 13.73 1.37 19.50 290.29 0.3472 768.0 873.4
9 0 5 0 2 13.54 1.06 19.19 290.03 0.3415 387.0 387.6
10 15 361 8 189 13.23 359.97 18.10 290.04 0.3233 1183.9 696.4
11 50 -10 26 -10 14.02 359.90 18.03 292.43 0.3263 1957.7 999999
12 17 -10 9 -10 12.76 359.76 17.89 288.81 0.3179 709.2 999999
13 -11 -10 -11 -10 13.76 359.46 17.59 292.10 0.3181 999999 999999
14 0 4 0 2 11.70 358.60 16.73 286.39 0.2951 -747.0 -605.3
15 14 127 7 66 12.89 358.38 16.51 290.47 0.2970 1329.9 841.7
16 0 5 0 3 12.08 357.87 16.00 288.29 0.2851 834.0 674.3
17 0 5 0 3 13.90 357.91 16.03 294.21 0.2953 666.0 661.1
18 13 -15 7 -15 13.42 357.83 15.96 292.78 0.2914 1608.7 999999
19 7 -15 4 -15 13.11 357.73 15.85 291.88 0.2880 1875.9 999999
20 0 6 0 3 12.08 356.62 14.75 289.54 0.2654 -613.0 -562.0
21 0 6 0 3 14.11 354.87 13.00 299.33 0.2514 607.0 449.1
22 0 4 0 2 14.00 354.45 12.58 299.70 0.2444 -399.0 -409.8
23 0 5 0 3 12.67 353.93 12.06 295.52 0.2268 -782.0 -669.4
24 11 40 6 21 13.52 353.27 11.40 300.16 0.2232 -1376.6 -773.7
25 0 3 0 2 12.89 353.00 11.12 298.17 0.2143 -559.0 -458.2
26 0 11 0 5 13.10 352.59 10.72 299.88 0.2099 -1100.0 -895.9
27 0 2 0 1 14.09 352.52 10.64 304.08 0.2173 -573.0 -536.8
28 0 11 0 5 13.85 352.38 10.51 303.48 0.2133 -899.0 -847.5
29 5 9 3 5 12.88 352.01 10.14 300.23 0.1995 -1145.9 -905.8
30 0 20 0 10 14.22 351.95 10.07 306.02 0.2106 -904.0 -852.2
31 0 6 0 3 13.75 351.93 10.05 304.16 0.2058 -914.0 -946.7
32 0 5 0 3 14.66 351.72 9.85 308.33 0.2119 -792.0 -732.2
33 0 5 0 2 16.32 351.68 9.80 314.31 0.2294 -717.0 -587.5
34 4 85 2 43 13.08 351.49 9.62 302.44 0.1937 -1348.7 -987.7
35 0 5 0 3 16.29 351.26 9.39 315.42 0.2241 -712.0 -590.6
36 10 -34 5 -34 13.29 351.05 9.18 304.55 0.1893 -1487.9 999999
37 10 -34 5 -34 13.30 350.72 8.85 305.51 0.1848 -1560.8 999999
38 0 3 0 1 15.36 350.19 8.32 315.61 0.2002 -690.0 -658.3
39 0 5 0 3 14.61 349.91 8.04 313.72 0.1881 -915.0 -710.4
40 0 5 0 2 14.30 349.49 7.62 313.97 0.1794 -915.0 -773.4


  		• Proj. U -  Projected umbra area in millionths of solar disc, negative values indicate
    that the umbra consists of fragmented regions which cannot be separated without losing umbral area.
    In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that
    the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
  		• Proj. WS -  Projected whole spot area in millionths of solar disc, negative values indicate
    that several umbras have a common penumbra, e.g. -7 means that the given umbra shares
    a penumbra with umbra No.7, and the WS value is indicated at No.7.
  		• Corr. U -  Corrected umbra area in millionths of solar hemisphere, for negative values see above
  		• Corr. WS -  Corrected whole spot area in millionths of solar hemisphere, for negative values see above
  		• B -  Heliographic latitude B; positive: North, negative: South
  		• L -  Heliographic longitude L
  		• LCM -  Longitudinal distance from the Sun's central meridian
  		• Pos. angle -  Position angle
  		• r -  Distance from the centre of Sun's disc in terms of Sun's radius
  		• MU -  Mean magnetic field within the umbra contour averaged the pixel values with sign.
  		• MP -  Mean magnetic field within the penumbra contour averaged the pixel values with sign.
