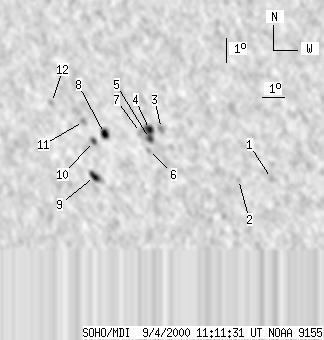

SOHO MDI 2000-09-04 11:11:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 19 | 82 | 10 | 46 | -9.68 | 315.14 | -24.97 | 124.02 | 0.5037 | -324.2 | -241.6 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-09-04 11:11:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 4 | 0 | 2 | -10.89 | 321.15 | -18.97 | 133.66 | 0.4430 | -517.0 | -362.3 | |
| 0 | 3 | 0 | 2 | -10.99 | 319.74 | -20.37 | 131.77 | 0.4601 | -662.0 | -512.4 | |
| 0 | 6 | 0 | 3 | -9.06 | 316.57 | -23.54 | 124.43 | 0.4802 | -969.0 | -692.3 | |
| 5 | 23 | 3 | 13 | -9.13 | 316.04 | -24.07 | 123.94 | 0.4874 | -1174.2 | -785.6 | |
| 2 | -4 | 1 | -4 | -9.49 | 316.01 | -24.10 | 124.54 | 0.4909 | -853.0 | 999999 | |
| 0 | 3 | 0 | 2 | -9.99 | 315.93 | -24.18 | 125.28 | 0.4962 | -545.0 | -372.5 | |
| 0 | 4 | 0 | 2 | -9.27 | 315.64 | -24.47 | 123.74 | 0.4937 | -423.0 | -324.3 | |
| 6 | 11 | 3 | 6 | -9.40 | 314.04 | -26.07 | 122.28 | 0.5148 | 926.4 | 654.1 | |
| 6 | 13 | 3 | 7 | -11.20 | 313.43 | -26.68 | 124.55 | 0.5369 | -589.7 | -332.6 | |
| 0 | 6 | 0 | 3 | -9.76 | 313.52 | -26.59 | 122.34 | 0.5242 | 756.0 | 498.8 | |
| 0 | 5 | 0 | 3 | -8.96 | 313.14 | -26.97 | 120.67 | 0.5228 | 751.0 | 763.8 | |
| 0 | 4 | 0 | 3 | -8.27 | 311.76 | -28.35 | 118.26 | 0.5356 | -367.0 | -354.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
