groupProj. UProj. WSCorr. UCorr. WS BLLCMPos. angler MU MP

9149 157 932 84 506 13.39 357.94 23.11 287.35 0.4007 789.4 308.6


previous   or   next   observation for the same group / back to the solar disc

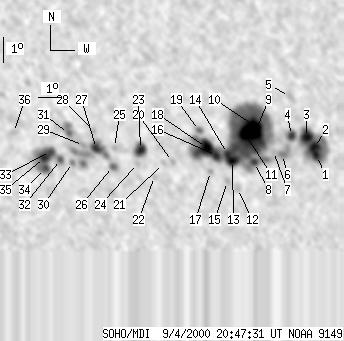

SOHO MDI 2000-09-04 20:47:31 UT
No observation available


spotProj. UProj. WSCorr. UCorr. WSBLLCMPos. angler MU MP

1 7 114 4 64 12.77 2.55 27.73 283.66 0.4689 1213.2 642.9
2 11 -1 6 -1 13.09 2.50 27.67 284.35 0.4689 1316.4 999999
3 12 -1 7 -1 13.50 2.19 27.36 285.34 0.4653 1364.6 999999
4 7 14 4 8 13.62 1.52 26.69 285.85 0.4557 1063.9 854.5
5 0 11 0 6 15.16 1.63 26.80 289.09 0.4625 775.0 572.3
6 0 18 0 10 12.89 1.03 26.20 284.46 0.4464 1025.0 825.7
7 0 8 0 5 13.03 0.64 25.82 284.92 0.4409 -10.0 597.9
8 4 501 2 273 12.64 359.75 24.93 284.39 0.4264 1140.1 639.4
9 40 -8 22 -8 13.78 359.88 25.05 286.95 0.4317 1889.8 999999
10 -9 -8 -9 -8 14.10 359.87 25.04 287.67 0.4327 999999 999999
11 -9 -8 -9 -8 13.85 359.44 24.61 287.31 0.4254 999999 999999
12 0 9 0 5 11.66 358.91 24.08 282.38 0.4108 -627.0 -314.2
13 9 -8 5 -8 12.77 358.80 23.97 285.09 0.4121 -1289.6 999999
14 4 -8 2 -8 13.06 358.60 23.78 285.87 0.4100 -880.2 999999
15 0 4 0 2 11.96 358.50 23.67 283.25 0.4052 495.0 395.1
16 8 -8 4 -8 13.00 358.12 23.29 285.97 0.4024 921.2 999999
17 0 4 0 2 12.39 357.79 22.97 284.61 0.3955 737.0 528.7
18 19 -8 10 -8 13.34 357.71 22.88 287.01 0.3974 1607.6 999999
19 0 9 0 5 14.02 357.47 22.65 288.83 0.3964 936.0 713.2
20 0 4 0 2 12.86 356.19 21.36 286.64 0.3722 -368.0 -278.5
21 0 5 0 2 12.80 355.79 20.97 286.71 0.3659 -205.0 -237.5
22 0 5 0 3 12.30 355.36 20.54 285.63 0.3575 -618.0 -514.8
23 10 24 5 13 13.39 354.86 20.03 288.94 0.3538 1235.6 814.5
24 0 3 0 2 12.84 354.68 19.85 287.56 0.3488 -210.0 -257.7
25 0 5 0 2 13.51 353.75 18.93 290.15 0.3374 -382.0 -273.4
26 0 11 0 6 12.77 353.61 18.78 288.11 0.3318 -777.0 -734.4
27 7 73 3 38 13.50 352.99 18.16 290.79 0.3256 -1204.0 -868.4
28 0 3 0 1 14.22 352.92 18.09 292.93 0.3283 -540.0 -437.1
29 0 9 0 5 13.64 352.45 17.62 291.71 0.3180 -977.0 -853.0
30 0 5 0 3 12.99 351.93 17.11 290.20 0.3068 -1135.0 -835.7
31 0 17 0 9 14.14 351.85 17.02 293.82 0.3117 -1214.0 -965.4
32 3 13 1 7 13.13 351.44 16.61 291.11 0.2998 -1314.9 -966.4
33 5 61 3 32 13.46 351.04 16.21 292.59 0.2954 -1278.5 -967.3
34 4 -33 2 -33 12.79 350.79 15.96 290.71 0.2879 -1277.8 999999
35 7 -33 4 -33 13.23 350.77 15.95 292.15 0.2900 -1720.5 999999
36 0 2 0 1 14.26 349.54 14.72 297.10 0.2778 -889.0 -830.6


  		• Proj. U -  Projected umbra area in millionths of solar disc, negative values indicate
    that the umbra consists of fragmented regions which cannot be separated without losing umbral area.
    In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that
    the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
  		• Proj. WS -  Projected whole spot area in millionths of solar disc, negative values indicate
    that several umbras have a common penumbra, e.g. -7 means that the given umbra shares
    a penumbra with umbra No.7, and the WS value is indicated at No.7.
  		• Corr. U -  Corrected umbra area in millionths of solar hemisphere, for negative values see above
  		• Corr. WS -  Corrected whole spot area in millionths of solar hemisphere, for negative values see above
  		• B -  Heliographic latitude B; positive: North, negative: South
  		• L -  Heliographic longitude L
  		• LCM -  Longitudinal distance from the Sun's central meridian
  		• Pos. angle -  Position angle
  		• r -  Distance from the centre of Sun's disc in terms of Sun's radius
  		• MU -  Mean magnetic field within the umbra contour averaged the pixel values with sign.
  		• MP -  Mean magnetic field within the penumbra contour averaged the pixel values with sign.
