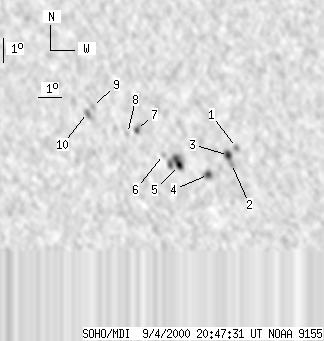

SOHO MDI 2000-09-04 20:47:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11 | 83 | 5 | 45 | -8.97 | 313.92 | -20.91 | 127.70 | 0.4473 | -232.8 | 121.1 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-09-04 20:47:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 5 | 0 | 2 | -8.68 | 316.54 | -18.29 | 130.85 | 0.4118 | -772.0 | -649.0 | |
| 0 | 4 | 0 | 2 | -9.35 | 316.30 | -18.53 | 131.68 | 0.4216 | -890.0 | -601.5 | |
| 4 | 11 | 2 | 6 | -9.02 | 316.19 | -18.64 | 130.93 | 0.4196 | -1075.4 | -803.0 | |
| 3 | 10 | 1 | 5 | -9.84 | 315.30 | -19.53 | 131.04 | 0.4385 | -839.8 | -530.7 | |
| 4 | 28 | 2 | 15 | -9.53 | 314.09 | -20.74 | 128.78 | 0.4498 | 846.8 | 884.7 | |
| 0 | 5 | 0 | 3 | -9.11 | 313.43 | -21.39 | 127.17 | 0.4538 | 675.0 | 531.1 | |
| 0 | 6 | 0 | 4 | -8.14 | 312.34 | -22.49 | 124.06 | 0.4589 | -744.0 | -515.2 | |
| 0 | 3 | 0 | 2 | -8.33 | 311.94 | -22.89 | 123.91 | 0.4656 | -356.0 | -338.1 | |
| 0 | 3 | 0 | 2 | -7.31 | 310.49 | -24.34 | 120.44 | 0.4761 | 481.0 | 515.8 | |
| 0 | 8 | 0 | 4 | -7.56 | 310.26 | -24.57 | 120.65 | 0.4811 | 640.0 | 565.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
