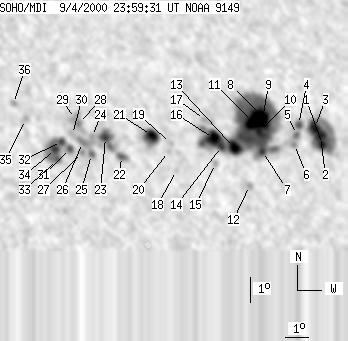

SOHO MDI 2000-09-04 23:59:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 172 | 927 | 96 | 507 | 13.40 | 357.73 | 24.67 | 286.58 | 0.4243 | 764.8 | 268.2 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-09-04 23:59:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6 | 121 | 4 | 69 | 12.78 | 2.54 | 29.47 | 283.18 | 0.4948 | 1189.1 | 494.7 | |
| 11 | -1 | 6 | -1 | 13.10 | 2.48 | 29.42 | 283.84 | 0.4947 | 1254.8 | 999999 | |
| 14 | -1 | 8 | -1 | 13.47 | 2.26 | 29.19 | 284.65 | 0.4922 | 1317.9 | 999999 | |
| 4 | 14 | 2 | 8 | 13.64 | 1.54 | 28.47 | 285.22 | 0.4821 | 1045.2 | 786.5 | |
| 0 | 12 | 0 | 7 | 13.25 | 1.40 | 28.33 | 284.47 | 0.4790 | 635.0 | 758.3 | |
| 0 | 13 | 0 | 7 | 12.86 | 1.26 | 28.19 | 283.71 | 0.4760 | 884.0 | 781.3 | |
| 6 | 474 | 3 | 262 | 12.67 | 359.78 | 26.72 | 283.78 | 0.4535 | 939.5 | 640.7 | |
| 43 | -7 | 24 | -7 | 14.04 | 359.95 | 26.88 | 286.69 | 0.4599 | 1792.3 | 999999 | |
| -8 | -7 | -8 | -7 | 13.73 | 359.86 | 26.80 | 286.05 | 0.4576 | 999999 | 999999 | |
| 5 | -7 | 3 | -7 | 13.46 | 359.74 | 26.68 | 285.52 | 0.4550 | 1497.3 | 999999 | |
| -8 | -7 | -8 | -7 | 13.87 | 359.47 | 26.41 | 286.52 | 0.4523 | 999999 | 999999 | |
| 0 | 7 | 0 | 4 | 11.37 | 359.06 | 26.00 | 281.10 | 0.4398 | -620.0 | -487.6 | |
| 16 | -7 | 9 | -7 | 12.89 | 358.55 | 25.49 | 284.73 | 0.4356 | -1290.0 | 999999 | |
| 5 | -7 | 3 | -7 | 12.96 | 357.98 | 24.92 | 285.12 | 0.4271 | 752.9 | 999999 | |
| 0 | 6 | 0 | 3 | 12.31 | 357.65 | 24.58 | 283.73 | 0.4202 | 634.0 | 574.1 | |
| 19 | -7 | 11 | -7 | 13.30 | 357.66 | 24.60 | 286.04 | 0.4233 | 1551.0 | 999999 | |
| 0 | 11 | 0 | 6 | 14.06 | 357.35 | 24.28 | 287.98 | 0.4212 | 574.0 | 622.4 | |
| 0 | 3 | 0 | 2 | 12.12 | 355.92 | 22.85 | 283.98 | 0.3930 | -590.0 | -524.7 | |
| 0 | 3 | 0 | 2 | 13.19 | 355.76 | 22.69 | 286.74 | 0.3940 | -223.0 | -294.9 | |
| 0 | 4 | 0 | 2 | 12.88 | 355.64 | 22.58 | 286.03 | 0.3911 | -390.0 | -291.3 | |
| 16 | 40 | 9 | 21 | 13.55 | 354.97 | 21.90 | 288.09 | 0.3831 | 1312.9 | 701.1 | |
| 3 | 12 | 2 | 6 | 12.78 | 353.60 | 20.53 | 286.93 | 0.3591 | -933.8 | -724.9 | |
| 8 | 49 | 4 | 26 | 13.55 | 352.98 | 19.91 | 289.48 | 0.3528 | -1103.9 | -688.3 | |
| 0 | 9 | 0 | 5 | 13.62 | 352.43 | 19.36 | 290.08 | 0.3446 | -1013.0 | -968.2 | |
| 0 | 6 | 0 | 3 | 12.91 | 352.33 | 19.26 | 288.16 | 0.3399 | -1111.0 | -974.2 | |
| 0 | 15 | 0 | 8 | 13.40 | 351.98 | 18.92 | 289.82 | 0.3367 | -1380.0 | -1061.1 | |
| 0 | 4 | 0 | 2 | 13.00 | 351.95 | 18.89 | 288.72 | 0.3344 | -1101.0 | -936.6 | |
| 0 | 12 | 0 | 6 | 14.15 | 351.88 | 18.81 | 292.06 | 0.3388 | -1050.0 | -876.7 | |
| 0 | 16 | 0 | 8 | 14.36 | 351.72 | 18.66 | 292.78 | 0.3376 | -1027.0 | -928.8 | |
| 0 | 9 | 0 | 4 | 13.73 | 351.58 | 18.52 | 291.12 | 0.3322 | -1088.0 | -880.8 | |
| 3 | 76 | 2 | 40 | 13.18 | 351.45 | 18.39 | 289.63 | 0.3276 | -1183.1 | -949.0 | |
| 4 | -31 | 2 | -31 | 13.47 | 351.10 | 18.03 | 290.81 | 0.3234 | -1215.6 | 999999 | |
| 3 | -31 | 1 | -31 | 12.77 | 350.87 | 17.81 | 288.89 | 0.3166 | -1098.1 | 999999 | |
| 6 | -31 | 3 | -31 | 13.17 | 350.82 | 17.75 | 290.14 | 0.3176 | -1604.4 | 999999 | |
| 0 | 5 | 0 | 3 | 14.39 | 349.64 | 16.58 | 295.09 | 0.3065 | -907.0 | -769.1 | |
| 0 | 6 | 0 | 3 | 15.04 | 349.19 | 16.12 | 297.63 | 0.3040 | -1014.0 | -756.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
