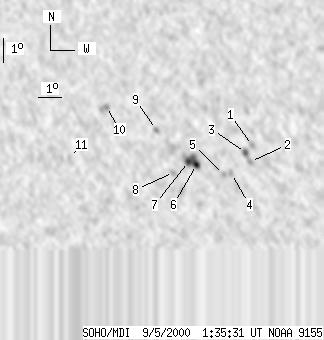

SOHO MDI 2000-09-05 01:35:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7 | 81 | 4 | 45 | -9.06 | 313.44 | -18.75 | 131.08 | 0.4221 | 535.1 | 203.2 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-09-05 01:35:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 5 | 0 | 3 | -8.66 | 316.52 | -15.67 | 135.28 | 0.3811 | -798.0 | -598.8 | |
| 0 | 6 | 0 | 3 | -9.32 | 316.40 | -15.78 | 136.27 | 0.3899 | -797.0 | -656.5 | |
| 0 | 8 | 0 | 4 | -8.96 | 316.21 | -15.97 | 135.27 | 0.3879 | -1147.0 | -761.7 | |
| 0 | 4 | 0 | 2 | -9.84 | 315.59 | -16.59 | 135.74 | 0.4049 | -635.0 | -423.5 | |
| 0 | 4 | 0 | 2 | -9.90 | 315.25 | -16.93 | 135.26 | 0.4093 | -671.0 | -445.8 | |
| 4 | 26 | 2 | 14 | -9.53 | 314.15 | -18.04 | 132.79 | 0.4178 | 935.5 | 907.7 | |
| 3 | -6 | 2 | -6 | -9.42 | 313.82 | -18.37 | 132.07 | 0.4205 | 893.7 | 999999 | |
| 0 | 5 | 0 | 3 | -9.90 | 313.16 | -19.02 | 131.90 | 0.4332 | 590.0 | 454.6 | |
| 0 | 5 | 0 | 3 | -8.17 | 312.54 | -19.64 | 127.86 | 0.4232 | -495.0 | -335.5 | |
| 0 | 10 | 0 | 6 | -7.33 | 310.47 | -21.72 | 123.50 | 0.4419 | 694.0 | 586.9 | |
| 0 | 8 | 0 | 5 | -9.50 | 308.75 | -23.44 | 125.31 | 0.4827 | 486.0 | 221.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
