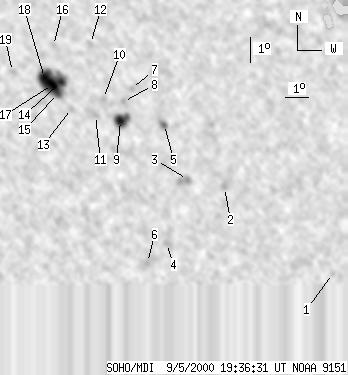

SOHO MDI 2000-09-05 19:36:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 43 | 204 | 22 | 109 | 9.63 | 340.77 | 18.50 | 279.48 | 0.3201 | -725.9 | -275.8 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-09-05 19:36:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 3 | 0 | 2 | 2.99 | 350.39 | 28.12 | 262.80 | 0.4764 | 539.0 | 507.1 | |
| 0 | 7 | 0 | 4 | 6.62 | 345.81 | 23.54 | 269.91 | 0.3985 | -662.0 | -674.2 | |
| 0 | 16 | 0 | 8 | 7.01 | 344.25 | 21.98 | 270.75 | 0.3731 | -858.0 | -708.2 | |
| 0 | 10 | 0 | 6 | 4.54 | 343.26 | 20.99 | 263.78 | 0.3607 | -788.0 | -632.9 | |
| 0 | 9 | 0 | 5 | 9.21 | 343.39 | 21.12 | 276.81 | 0.3598 | 748.0 | 684.7 | |
| 0 | 3 | 0 | 2 | 3.83 | 342.44 | 20.17 | 261.42 | 0.3495 | -853.0 | -767.8 | |
| 0 | 4 | 0 | 2 | 10.68 | 342.08 | 19.81 | 281.39 | 0.3413 | 544.0 | 468.0 | |
| 0 | 4 | 0 | 2 | 10.19 | 341.71 | 19.44 | 280.08 | 0.3342 | 842.0 | 690.8 | |
| 10 | 29 | 5 | 15 | 9.45 | 341.54 | 19.27 | 277.91 | 0.3301 | 1387.4 | 886.1 | |
| 0 | 3 | 0 | 2 | 10.34 | 340.88 | 18.61 | 280.87 | 0.3211 | 572.0 | 534.9 | |
| 0 | 5 | 0 | 3 | 9.68 | 340.50 | 18.24 | 278.96 | 0.3137 | 712.0 | 504.9 | |
| 0 | 5 | 0 | 3 | 12.52 | 340.48 | 18.21 | 287.79 | 0.3218 | 493.0 | 379.7 | |
| 0 | 4 | 0 | 2 | 10.00 | 339.52 | 17.25 | 280.37 | 0.2982 | -432.0 | -347.8 | |
| 5 | 93 | 3 | 48 | 11.07 | 339.16 | 16.89 | 284.15 | 0.2954 | -959.9 | -834.7 | |
| 4 | -14 | 2 | -14 | 10.61 | 338.97 | 16.70 | 282.71 | 0.2908 | -752.8 | 999999 | |
| 0 | 4 | 0 | 2 | 12.50 | 338.92 | 16.65 | 289.04 | 0.2972 | -562.0 | -396.4 | |
| 24 | -14 | 12 | -14 | 10.97 | 338.78 | 16.51 | 284.05 | 0.2889 | -1727.0 | 999999 | |
| -17 | -14 | -17 | -14 | 11.25 | 338.46 | 16.20 | 285.26 | 0.2848 | 999999 | 999999 | |
| 0 | 5 | 0 | 3 | 11.53 | 337.15 | 14.88 | 287.37 | 0.2649 | 550.0 | 470.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
