groupProj. UProj. WSCorr. UCorr. WS BLLCMPos. angler MU MP

9149 156 836 98 514 13.34 358.17 36.56 282.75 0.5954 625.9 312.8


previous   or   next   observation for the same group / back to the solar disc

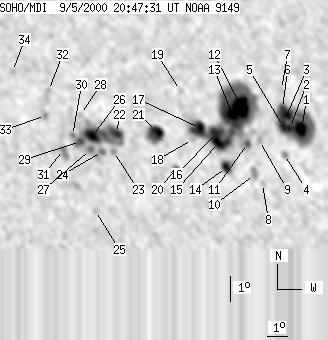

SOHO MDI 2000-09-05 20:47:31 UT
No observation available


spotProj. UProj. WSCorr. UCorr. WSBLLCMPos. angler MU MP

1 13 179 9 116 12.95 2.67 41.06 281.44 0.6554 1101.7 513.8
2 6 -1 4 -1 13.04 2.05 40.44 281.64 0.6474 1285.1 999999
3 10 -1 6 -1 13.56 2.00 40.38 282.45 0.6473 987.6 999999
4 0 7 0 4 12.05 1.60 39.98 280.14 0.6407 641.0 629.5
5 8 -1 5 -1 13.14 1.76 40.14 281.84 0.6437 1425.4 999999
6 4 -1 3 -1 13.85 1.85 40.23 282.92 0.6457 940.3 999999
7 0 6 0 4 14.60 1.95 40.34 284.06 0.6480 560.0 569.2
8 0 5 0 3 11.00 0.28 38.67 278.58 0.6225 -340.0 -331.0
9 0 6 0 4 12.69 0.42 38.80 281.28 0.6256 728.0 592.6
10 0 10 0 7 11.39 359.94 38.32 279.22 0.6181 779.0 610.5
11 3 9 2 6 12.62 359.79 38.17 281.25 0.6171 712.9 576.2
12 28 356 18 221 14.10 359.75 38.14 283.63 0.6186 1363.9 578.7
13 6 -12 4 -12 13.82 359.24 37.62 283.27 0.6113 1815.8 999999
14 7 20 4 12 11.77 358.58 36.96 279.97 0.5999 -379.8 -10.2
15 13 -12 8 -12 12.77 358.34 36.72 281.68 0.5977 -1111.6 999999
16 10 -12 6 -12 13.17 358.31 36.69 282.36 0.5978 747.1 999999
17 11 -12 7 -12 13.39 357.54 35.93 282.85 0.5877 925.8 999999
18 0 2 0 1 12.98 357.08 35.46 282.24 0.5807 583.0 620.3
19 0 5 0 3 14.95 356.83 35.21 285.66 0.5808 601.0 504.9
20 0 10 0 6 11.90 356.12 34.51 280.50 0.5660 -680.0 -511.7
21 13 39 8 23 13.42 355.38 33.77 283.33 0.5578 1185.2 799.3
22 8 115 5 66 13.47 353.47 31.85 283.87 0.5307 452.2 -479.3
23 0 5 0 3 12.77 353.23 31.61 282.62 0.5259 -593.0 -490.8
24 0 14 0 8 12.80 352.71 31.09 282.80 0.5185 -781.0 -644.8
25 0 4 0 2 10.51 352.10 30.49 278.44 0.5063 -348.0 -411.1
26 13 -22 8 -22 13.46 352.33 30.72 284.16 0.5144 -1321.2 999999
27 0 11 0 6 12.92 352.16 30.55 283.15 0.5108 -1112.0 -815.1
28 0 3 0 2 14.32 351.90 30.28 285.96 0.5102 -462.0 -477.5
29 3 -22 1 -22 13.26 351.74 30.13 283.94 0.5054 -1331.3 999999
30 0 5 0 3 13.52 351.41 29.79 284.55 0.5011 -1000.0 -869.9
31 0 12 0 7 13.00 350.92 29.30 283.64 0.4927 -1144.0 -838.7
32 0 4 0 2 15.36 350.56 28.94 288.50 0.4940 -799.0 -655.2
33 0 5 0 3 14.38 350.27 28.66 286.66 0.4869 -805.0 -737.0
34 0 4 0 2 16.20 349.02 27.40 290.94 0.4752 -682.0 -502.2


  		• Proj. U -  Projected umbra area in millionths of solar disc, negative values indicate
    that the umbra consists of fragmented regions which cannot be separated without losing umbral area.
    In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that
    the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
  		• Proj. WS -  Projected whole spot area in millionths of solar disc, negative values indicate
    that several umbras have a common penumbra, e.g. -7 means that the given umbra shares
    a penumbra with umbra No.7, and the WS value is indicated at No.7.
  		• Corr. U -  Corrected umbra area in millionths of solar hemisphere, for negative values see above
  		• Corr. WS -  Corrected whole spot area in millionths of solar hemisphere, for negative values see above
  		• B -  Heliographic latitude B; positive: North, negative: South
  		• L -  Heliographic longitude L
  		• LCM -  Longitudinal distance from the Sun's central meridian
  		• Pos. angle -  Position angle
  		• r -  Distance from the centre of Sun's disc in terms of Sun's radius
  		• MU -  Mean magnetic field within the umbra contour averaged the pixel values with sign.
  		• MP -  Mean magnetic field within the penumbra contour averaged the pixel values with sign.
