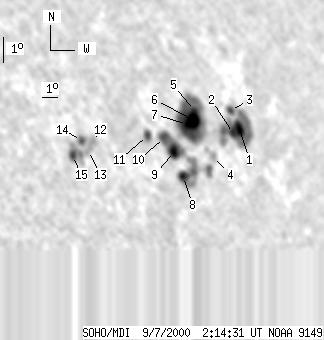

SOHO MDI 2000-09-07 02:14:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 84 | 609 | 69 | 501 | 13.17 | 358.95 | 53.54 | 281.07 | 0.7993 | 338.9 | 246.9 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-09-07 02:14:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10 | 152 | 9 | 135 | 13.17 | 2.46 | 57.06 | 281.02 | 0.8346 | 553.8 | 290.6 | |
| 6 | -1 | 6 | -1 | 13.02 | 1.97 | 56.56 | 280.84 | 0.8299 | 854.1 | 999999 | |
| 4 | -1 | 3 | -1 | 13.93 | 2.08 | 56.67 | 281.94 | 0.8310 | 523.1 | 999999 | |
| 0 | 17 | 0 | 14 | 12.28 | 0.28 | 54.88 | 279.93 | 0.8136 | 445.0 | 437.5 | |
| 4 | 362 | 3 | 295 | 14.18 | 359.59 | 54.18 | 282.30 | 0.8068 | 674.8 | 330.1 | |
| 17 | -5 | 14 | -5 | 13.80 | 359.39 | 53.98 | 281.83 | 0.8047 | 1020.9 | 999999 | |
| 5 | -5 | 4 | -5 | 13.69 | 358.94 | 53.53 | 281.70 | 0.8001 | 1437.2 | 999999 | |
| 9 | -5 | 8 | -5 | 11.70 | 358.07 | 52.66 | 279.21 | 0.7910 | -505.6 | 999999 | |
| 11 | -5 | 9 | -5 | 12.73 | 357.76 | 52.36 | 280.51 | 0.7878 | -643.5 | 999999 | |
| 4 | -5 | 3 | -5 | 13.33 | 357.29 | 51.88 | 281.29 | 0.7829 | 805.4 | 999999 | |
| 5 | 12 | 4 | 9 | 13.52 | 356.24 | 50.83 | 281.56 | 0.7717 | 703.0 | 503.0 | |
| 0 | 12 | 0 | 9 | 13.59 | 352.85 | 47.44 | 281.84 | 0.7339 | 146.0 | 127.0 | |
| 0 | 9 | 0 | 7 | 13.26 | 352.53 | 47.12 | 281.41 | 0.7299 | -42.0 | -166.0 | |
| 3 | 11 | 2 | 8 | 13.69 | 352.22 | 46.81 | 282.02 | 0.7266 | -818.0 | -608.5 | |
| 6 | 34 | 4 | 24 | 13.15 | 351.56 | 46.15 | 281.31 | 0.7185 | -1005.8 | -779.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
