SOHO MDI 2000-09-07 04:47:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 46 | 187 | 28 | 114 | 10.14 | 341.12 | 37.11 | 277.39 | 0.6007 | 196.7 | -19.3 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-09-07 04:47:31 UT |

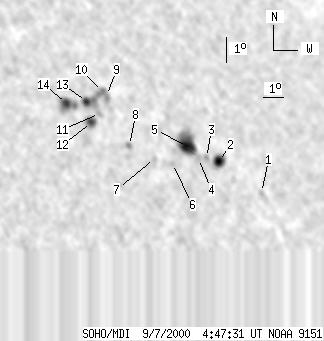

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 4 | 0 | 2 | 7.33 | 346.60 | 42.60 | 272.93 | 0.6745 | -649.0 | -555.6 | |
| 8 | 22 | 5 | 14 | 8.73 | 344.50 | 40.49 | 274.95 | 0.6465 | 807.8 | 560.6 | |
| 0 | 4 | 0 | 2 | 8.94 | 343.90 | 39.89 | 275.26 | 0.6386 | 531.0 | 452.9 | |
| 0 | 5 | 0 | 3 | 8.93 | 343.48 | 39.48 | 275.24 | 0.6330 | 699.0 | 666.1 | |
| 19 | 59 | 12 | 38 | 9.44 | 342.99 | 38.98 | 276.06 | 0.6263 | 1176.4 | 609.9 | |
| 0 | 4 | 0 | 2 | 8.84 | 342.15 | 38.14 | 275.08 | 0.6149 | 735.0 | 597.3 | |
| 0 | 3 | 0 | 2 | 9.10 | 341.27 | 37.27 | 275.51 | 0.6029 | 636.0 | 655.2 | |
| 0 | 4 | 0 | 3 | 9.70 | 340.10 | 36.10 | 276.53 | 0.5868 | -582.0 | -425.9 | |
| 0 | 5 | 0 | 3 | 11.74 | 339.25 | 35.25 | 280.11 | 0.5761 | -194.0 | -340.0 | |
| 0 | 14 | 0 | 9 | 11.91 | 339.08 | 35.07 | 280.43 | 0.5739 | -751.0 | -688.5 | |
| 0 | 4 | 0 | 2 | 11.06 | 338.81 | 34.81 | 278.97 | 0.5693 | -640.0 | -579.7 | |
| 7 | 14 | 4 | 8 | 10.73 | 338.38 | 34.38 | 278.43 | 0.5630 | -996.3 | -751.2 | |
| 5 | 16 | 3 | 9 | 11.57 | 338.25 | 34.25 | 279.94 | 0.5619 | -1072.2 | -936.7 | |
| 7 | 29 | 4 | 17 | 11.56 | 337.28 | 33.28 | 280.05 | 0.5481 | -1262.4 | -790.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
