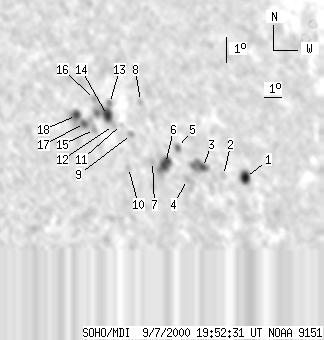

SOHO MDI 2000-09-07 19:52:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 39 | 196 | 28 | 135 | 10.19 | 341.34 | 45.64 | 277.26 | 0.7110 | 65.7 | 36.9 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-09-07 19:52:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8 | 20 | 6 | 16 | 8.54 | 346.27 | 50.57 | 275.08 | 0.7691 | 484.3 | 290.4 | |
| 0 | 6 | 0 | 4 | 8.74 | 344.95 | 49.24 | 275.29 | 0.7542 | 687.0 | 607.8 | |
| 4 | 26 | 3 | 19 | 9.17 | 343.76 | 48.05 | 275.81 | 0.7404 | 710.7 | 636.2 | |
| 0 | 12 | 0 | 8 | 8.79 | 342.80 | 47.10 | 275.25 | 0.7293 | 337.0 | 355.1 | |
| 0 | 8 | 0 | 5 | 10.08 | 342.45 | 46.75 | 277.03 | 0.7248 | 485.0 | 433.7 | |
| 11 | 29 | 8 | 21 | 9.52 | 341.65 | 45.95 | 276.24 | 0.7154 | 968.5 | 769.1 | |
| 0 | 5 | 0 | 3 | 9.67 | 340.94 | 45.23 | 276.43 | 0.7067 | 482.0 | 416.7 | |
| 0 | 5 | 0 | 3 | 12.06 | 340.72 | 45.01 | 279.84 | 0.7043 | -480.0 | -377.3 | |
| 0 | 5 | 0 | 3 | 10.82 | 339.96 | 44.26 | 278.08 | 0.6947 | -341.0 | -241.3 | |
| 0 | 6 | 0 | 4 | 9.55 | 339.57 | 43.87 | 276.24 | 0.6898 | 443.0 | 314.8 | |
| 0 | 3 | 0 | 2 | 11.26 | 339.49 | 43.78 | 278.73 | 0.6889 | -329.0 | -314.0 | |
| 0 | 5 | 0 | 3 | 11.25 | 339.04 | 43.34 | 278.74 | 0.6834 | -558.0 | -462.2 | |
| 0 | 7 | 0 | 5 | 12.13 | 338.99 | 43.29 | 280.03 | 0.6831 | -636.0 | -545.2 | |
| 10 | 26 | 7 | 17 | 11.67 | 338.79 | 43.09 | 279.37 | 0.6804 | -994.0 | -885.6 | |
| 0 | 6 | 0 | 4 | 11.19 | 337.99 | 42.29 | 278.68 | 0.6701 | -640.0 | -605.0 | |
| 0 | 6 | 0 | 4 | 12.36 | 338.22 | 42.51 | 280.41 | 0.6735 | -868.0 | -758.8 | |
| 3 | 9 | 2 | 6 | 11.46 | 337.50 | 41.80 | 279.12 | 0.6639 | -746.2 | -652.5 | |
| 3 | 12 | 2 | 8 | 11.81 | 337.14 | 41.43 | 279.67 | 0.6594 | -1027.1 | -853.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
