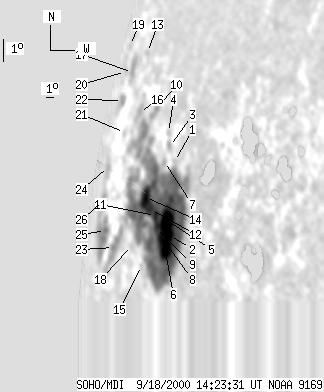

SOHO MDI 2000-09-18 14:23:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 114 | 1199 | 183 | 2191 | 10.28 | 78.25 | -75.22 | 81.28 | 0.9612 | 459.4 | 44.3 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-09-18 14:23:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 3 | 0 | 4 | 12.49 | 81.35 | -72.12 | 79.19 | 0.9474 | 166.0 | 156.7 | |
| 16 | 951 | 23 | 1505 | 9.66 | 82.40 | -71.08 | 82.26 | 0.9426 | 1119.7 | 70.3 | |
| 0 | 7 | 0 | 11 | 12.97 | 80.32 | -73.15 | 78.62 | 0.9527 | 75.0 | 79.4 | |
| 0 | 3 | 0 | 5 | 13.47 | 79.78 | -73.70 | 78.07 | 0.9553 | 38.0 | 114.3 | |
| 25 | -2 | 38 | -2 | 10.18 | 81.74 | -71.73 | 81.66 | 0.9461 | 672.2 | 999999 | |
| 17 | -2 | 25 | -2 | 9.00 | 82.22 | -71.25 | 82.94 | 0.9439 | 709.4 | 999999 | |
| 0 | 5 | 0 | 8 | 12.34 | 80.09 | -73.38 | 79.27 | 0.9541 | -140.0 | -70.5 | |
| 10 | -2 | 16 | -2 | 9.51 | 81.46 | -72.02 | 82.34 | 0.9479 | 159.9 | 999999 | |
| 6 | -2 | 9 | -2 | 9.77 | 80.65 | -72.82 | 82.00 | 0.9522 | -328.7 | 999999 | |
| 0 | 14 | 0 | 26 | 14.14 | 77.26 | -76.21 | 77.22 | 0.9669 | 63.0 | 181.8 | |
| 7 | -2 | 12 | -2 | 10.20 | 80.26 | -73.21 | 81.52 | 0.9540 | 286.9 | 999999 | |
| 10 | -2 | 16 | -2 | 10.35 | 79.45 | -74.02 | 81.31 | 0.9580 | 403.3 | 999999 | |
| 0 | 4 | 0 | 11 | 15.91 | 73.08 | -80.39 | 75.12 | 0.9820 | 211.0 | 135.5 | |
| 20 | -2 | 36 | -2 | 10.71 | 78.45 | -75.02 | 80.86 | 0.9627 | 262.8 | 999999 | |
| 0 | 2 | 0 | 4 | 8.12 | 79.42 | -74.05 | 83.63 | 0.9591 | -346.0 | -320.6 | |
| 0 | 17 | 0 | 39 | 13.65 | 74.57 | -78.90 | 77.53 | 0.9776 | 33.0 | -17.8 | |
| 0 | 22 | 0 | 69 | 14.82 | 70.88 | -82.59 | 76.04 | 0.9885 | -433.0 | -310.0 | |
| 0 | 4 | 0 | 7 | 8.69 | 77.54 | -75.93 | 82.87 | 0.9675 | -321.0 | -277.2 | |
| 0 | 5 | 0 | 24 | 15.58 | 68.04 | -85.43 | 75.02 | 0.9945 | -3.0 | 40.1 | |
| 0 | 3 | 0 | 10 | 14.60 | 68.75 | -84.72 | 76.06 | 0.9934 | 138.0 | 88.9 | |
| 0 | 2 | 0 | 6 | 12.59 | 72.45 | -81.02 | 78.43 | 0.9848 | -206.0 | -165.1 | |
| 0 | 13 | 0 | 45 | 13.59 | 70.08 | -83.39 | 77.21 | 0.9908 | -10.0 | 123.1 | |
| 0 | 50 | 0 | 121 | 8.24 | 74.50 | -78.97 | 83.04 | 0.9796 | -391.0 | -388.1 | |
| 0 | 12 | 0 | 42 | 10.94 | 70.16 | -83.31 | 79.88 | 0.9912 | 480.0 | 281.9 | |
| 3 | 60 | 8 | 176 | 8.64 | 72.26 | -81.21 | 82.40 | 0.9865 | -283.6 | 72.0 | |
| 0 | 22 | 0 | 78 | 9.62 | 70.49 | -82.98 | 81.24 | 0.9907 | 185.0 | 317.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
