SOHO MDI 2000-09-18 19:11:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 207 | 1487 | 316 | 2343 | 10.38 | 78.27 | -72.57 | 81.37 | 0.9472 | 473.2 | 37.7 | |
|
previous
or next observation for the same group /

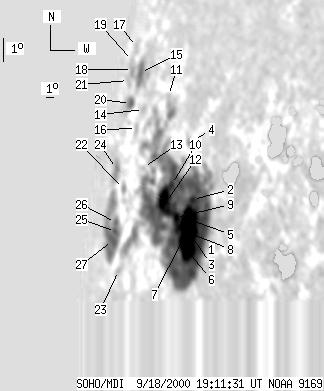

back to the solar disc SOHO MDI 2000-09-18 19:11:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 31 | 1206 | 39 | 1649 | 9.68 | 83.43 | -67.40 | 82.49 | 0.9196 | 839.9 | 38.9 | |
| 5 | -1 | 7 | -1 | 11.05 | 81.82 | -69.01 | 80.91 | 0.9296 | 811.2 | 999999 | |
| 21 | -1 | 28 | -1 | 9.68 | 82.36 | -68.47 | 82.42 | 0.9267 | 1274.3 | 999999 | |
| 0 | 6 | 0 | 9 | 13.15 | 80.24 | -70.59 | 78.58 | 0.9385 | 151.0 | 141.0 | |
| 32 | -1 | 43 | -1 | 10.25 | 81.77 | -69.06 | 81.77 | 0.9302 | 777.2 | 999999 | |
| 19 | -1 | 25 | -1 | 9.04 | 82.31 | -68.53 | 83.11 | 0.9273 | 856.1 | 999999 | |
| 12 | -1 | 16 | -1 | 9.42 | 81.47 | -69.36 | 82.64 | 0.9324 | 188.4 | 999999 | |
| 5 | -1 | 7 | -1 | 9.77 | 80.73 | -70.10 | 82.21 | 0.9368 | -203.6 | 999999 | |
| 12 | -1 | 17 | -1 | 10.16 | 80.30 | -70.53 | 81.77 | 0.9392 | 351.1 | 999999 | |
| 5 | -1 | 7 | -1 | 11.34 | 79.14 | -71.69 | 80.43 | 0.9454 | 545.6 | 999999 | |
| 0 | 3 | 0 | 5 | 14.57 | 76.23 | -74.60 | 76.87 | 0.9594 | 172.0 | -19.5 | |
| 37 | -1 | 57 | -1 | 10.58 | 78.81 | -72.02 | 81.21 | 0.9475 | 373.9 | 999999 | |
| 0 | 2 | 0 | 3 | 11.52 | 74.94 | -75.89 | 79.94 | 0.9663 | -216.0 | -247.9 | |
| 0 | 8 | 0 | 17 | 13.61 | 72.91 | -77.92 | 77.64 | 0.9740 | -225.0 | -169.2 | |
| 5 | 43 | 12 | 109 | 14.83 | 70.62 | -80.22 | 76.23 | 0.9817 | -387.4 | -352.3 | |
| 0 | 8 | 0 | 18 | 12.78 | 72.44 | -78.39 | 78.45 | 0.9760 | -167.0 | -201.8 | |
| 0 | 10 | 0 | 32 | 15.58 | 68.09 | -82.75 | 75.26 | 0.9888 | -33.0 | 31.5 | |
| 0 | 9 | 0 | 26 | 14.71 | 68.64 | -82.19 | 76.19 | 0.9875 | 130.0 | 60.9 | |
| 0 | 2 | 0 | 5 | 15.00 | 68.03 | -82.80 | 75.84 | 0.9890 | 246.0 | 120.4 | |
| 3 | 20 | 8 | 54 | 13.51 | 70.14 | -80.69 | 77.52 | 0.9836 | 8.1 | 135.3 | |
| 0 | 7 | 0 | 22 | 14.23 | 68.34 | -82.49 | 76.65 | 0.9884 | 144.0 | 142.7 | |
| 0 | 7 | 0 | 16 | 10.36 | 72.27 | -78.56 | 80.91 | 0.9774 | -69.0 | -160.0 | |
| 0 | 7 | 0 | 14 | 7.26 | 73.59 | -77.24 | 84.21 | 0.9735 | -269.0 | -265.0 | |
| 0 | 23 | 0 | 62 | 10.90 | 70.11 | -80.72 | 80.17 | 0.9844 | 324.0 | 242.8 | |
| 6 | 126 | 15 | 302 | 8.62 | 72.09 | -78.74 | 82.67 | 0.9786 | -292.5 | 153.5 | |
| 2 | -25 | 5 | -25 | 8.95 | 71.83 | -79.00 | 82.31 | 0.9794 | -149.6 | 999999 | |
| 12 | -25 | 30 | -25 | 8.22 | 71.77 | -79.07 | 83.04 | 0.9799 | -42.6 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
