group	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
9169	209	1573	298	2352	10.25	78.46	-71.50	81.59	0.9417	482.0	42.9

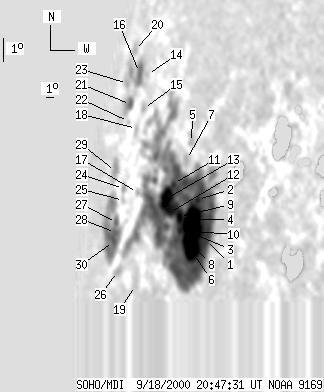

previous   or   next   observation for the same group / back to the solar disc SOHO MDI 2000-09-18 20:47:31 UT

spot	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
1	33	1255	40	1651	9.63	83.42	-66.54	82.61	0.9137	861.1	50.1
2	5	-1	6	-1	11.05	81.96	-67.99	80.97	0.9230	899.6	999999
3	42	-1	53	-1	9.69	82.26	-67.70	82.46	0.9216	1043.4	999999
4	36	-1	46	-1	10.23	81.70	-68.25	81.85	0.9250	767.1	999999
5	0	12	0	17	13.12	80.12	-69.83	78.65	0.9340	178.0	141.3
6	-3	-1	-3	-1	9.05	82.20	-67.75	83.15	0.9223	999999	999999
7	0	10	0	13	12.42	79.97	-69.98	79.39	0.9351	-43.0	15.9
8	10	-1	12	-1	9.36	81.43	-68.52	82.76	0.9272	188.1	999999
9	12	-1	16	-1	10.19	80.37	-69.58	81.80	0.9335	383.4	999999
10	6	-1	8	-1	9.66	80.62	-69.33	82.38	0.9321	-299.8	999999
11	5	-1	7	-1	11.35	79.04	-70.91	80.47	0.9410	621.2	999999
12	11	-1	16	-1	10.21	79.18	-70.77	81.69	0.9406	395.5	999999
13	24	-1	36	-1	10.70	78.54	-71.41	81.13	0.9441	387.8	999999
14	0	2	0	5	14.91	72.07	-77.88	76.31	0.9735	-222.0	-322.5
15	0	8	0	15	13.62	72.81	-77.14	77.68	0.9709	-309.0	-203.7
16	7	45	16	107	14.80	70.53	-79.42	76.31	0.9791	-427.0	-190.5
17	0	3	0	6	10.47	74.58	-75.37	81.07	0.9643	-232.0	-255.3
18	0	7	0	14	12.77	72.41	-77.54	78.53	0.9728	-287.0	-218.6
19	0	18	0	30	6.97	76.25	-73.70	84.85	0.9579	-127.0	-178.9
20	0	11	0	31	15.42	68.23	-81.72	75.50	0.9861	155.0	1.1
21	3	19	6	47	13.48	70.32	-79.63	77.64	0.9802	37.3	99.6
22	0	2	0	4	12.84	70.69	-79.26	78.32	0.9791	185.0	122.2
23	0	7	0	19	14.12	68.61	-81.35	76.85	0.9854	116.0	162.7
24	0	7	0	16	10.34	72.24	-77.71	81.00	0.9742	-229.0	-159.2
25	0	2	0	5	9.91	72.60	-77.35	81.48	0.9730	-212.0	-190.4
26	0	13	0	26	7.17	73.33	-76.62	84.35	0.9711	-282.0	-251.0
27	2	127	5	282	8.96	72.00	-77.95	82.40	0.9756	-220.5	132.2
28	6	-27	14	-27	8.57	72.09	-77.86	82.80	0.9754	-290.5	999999
29	0	25	0	64	10.77	70.16	-79.79	80.38	0.9815	67.0	234.0
30	7	-27	17	-27	8.20	71.97	-77.98	83.17	0.9760	-238.2	999999

	Proj. U	-  Projected umbra area in millionths of solar disc, negative values indicate
	that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
	Proj. WS	-  Projected whole spot area in millionths of solar disc, negative values indicate
	that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7.
	Corr. U	-  Corrected umbra area in millionths of solar hemisphere, for negative values see above
	Corr. WS	-  Corrected whole spot area in millionths of solar hemisphere, for negative values see above
	B	-  Heliographic latitude B; positive: North, negative: South
	L	-  Heliographic longitude L
	LCM	-  Longitudinal distance from the Sun's central meridian
	Pos. angle	-  Position angle
	r	-  Distance from the centre of Sun's disc in terms of Sun's radius
	MU	-  Mean magnetic field within the umbra contour averaged the pixel values with sign.
	MP	-  Mean magnetic field within the penumbra contour averaged the pixel values with sign.
