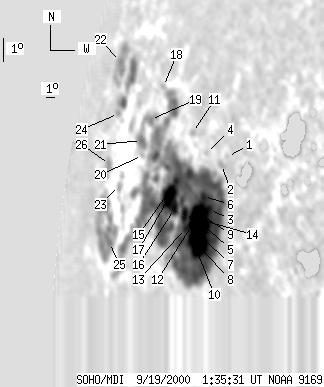

SOHO MDI 2000-09-19 01:35:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 166 | 1661 | 203 | 2210 | 10.36 | 78.40 | -68.91 | 81.65 | 0.9264 | 697.8 | 102.7 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-09-19 01:35:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 2 | 0 | 2 | 12.82 | 83.41 | -63.91 | 79.20 | 0.8934 | -44.0 | -137.2 | |
| 0 | 8 | 0 | 9 | 12.46 | 83.02 | -64.29 | 79.59 | 0.8964 | 65.0 | -8.9 | |
| 4 | 1348 | 5 | 1621 | 10.63 | 82.69 | -64.63 | 81.62 | 0.8995 | 1088.7 | 116.1 | |
| 0 | 3 | 0 | 4 | 12.76 | 81.43 | -65.88 | 79.20 | 0.9080 | -130.0 | -164.4 | |
| 12 | -3 | 14 | -3 | 9.93 | 82.49 | -64.83 | 82.38 | 0.9012 | 1526.1 | 999999 | |
| 6 | -3 | 7 | -3 | 11.06 | 81.94 | -65.38 | 81.10 | 0.9049 | 862.0 | 999999 | |
| 34 | -3 | 39 | -3 | 9.54 | 82.16 | -65.15 | 82.80 | 0.9038 | 1007.7 | 999999 | |
| -7 | -3 | -7 | -3 | 9.12 | 82.31 | -65.01 | 83.27 | 0.9029 | 999999 | 999999 | |
| 29 | -3 | 34 | -3 | 10.37 | 81.74 | -65.57 | 81.86 | 0.9065 | 821.9 | 999999 | |
| 11 | -3 | 13 | -3 | 9.31 | 81.57 | -65.75 | 83.01 | 0.9082 | 317.2 | 999999 | |
| 0 | 5 | 0 | 6 | 13.36 | 79.66 | -67.65 | 78.48 | 0.9200 | -66.0 | 23.5 | |
| 7 | -3 | 9 | -3 | 9.84 | 81.27 | -66.04 | 82.41 | 0.9101 | 454.3 | 999999 | |
| 4 | -3 | 5 | -3 | 9.66 | 80.74 | -66.57 | 82.58 | 0.9139 | -201.5 | 999999 | |
| 11 | -3 | 14 | -3 | 10.14 | 80.44 | -66.87 | 82.03 | 0.9158 | 409.7 | 999999 | |
| 5 | -3 | 6 | -3 | 11.37 | 79.03 | -68.29 | 80.61 | 0.9248 | 622.0 | 999999 | |
| 12 | -3 | 16 | -3 | 10.29 | 79.33 | -67.98 | 81.79 | 0.9233 | 550.0 | 999999 | |
| 31 | -3 | 41 | -3 | 10.69 | 78.60 | -68.71 | 81.32 | 0.9279 | 436.2 | 999999 | |
| 0 | 4 | 0 | 7 | 14.71 | 75.30 | -72.01 | 76.85 | 0.9462 | 102.0 | -3.0 | |
| 0 | 23 | 0 | 35 | 13.31 | 74.66 | -72.65 | 78.30 | 0.9500 | 79.0 | 66.4 | |
| 0 | 2 | 0 | 4 | 11.86 | 74.62 | -72.69 | 79.82 | 0.9507 | -85.0 | -62.9 | |
| 0 | 25 | 0 | 41 | 12.40 | 74.10 | -73.21 | 79.22 | 0.9532 | -40.0 | -34.9 | |
| 0 | 60 | 0 | 142 | 14.85 | 67.99 | -79.32 | 76.26 | 0.9788 | 287.0 | 80.5 | |
| 0 | 6 | 0 | 10 | 10.38 | 72.28 | -75.03 | 81.19 | 0.9628 | -323.0 | -251.3 | |
| 0 | 6 | 0 | 13 | 12.98 | 69.88 | -77.43 | 78.32 | 0.9723 | 305.0 | 234.2 | |
| 0 | 146 | 0 | 269 | 8.10 | 72.13 | -75.18 | 83.54 | 0.9644 | -362.0 | 60.7 | |
| 0 | 23 | 0 | 47 | 10.97 | 70.14 | -77.17 | 80.41 | 0.9719 | 294.0 | 226.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
