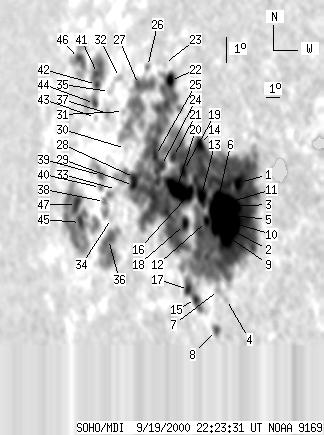

SOHO MDI 2000-09-19 22:23:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 386 | 3030 | 349 | 2783 | 10.54 | 77.92 | -57.95 | 82.01 | 0.8414 | 553.8 | 90.6 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-09-19 22:23:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 13 | 2309 | 11 | 1997 | 11.19 | 82.76 | -53.11 | 81.32 | 0.7960 | 1320.1 | 208.3 | |
| 51 | -1 | 41 | -1 | 9.32 | 82.55 | -53.32 | 83.67 | 0.7985 | 1518.7 | 999999 | |
| 47 | -1 | 39 | -1 | 10.20 | 82.28 | -53.60 | 82.56 | 0.8011 | 1541.8 | 999999 | |
| 0 | 5 | 0 | 4 | 6.59 | 82.86 | -53.01 | 87.11 | 0.7967 | -423.0 | -332.5 | |
| -3 | -1 | -3 | -1 | 9.86 | 82.02 | -53.85 | 82.98 | 0.8038 | 999999 | 999999 | |
| 13 | -1 | 11 | -1 | 10.48 | 81.53 | -54.35 | 82.19 | 0.8087 | 1180.0 | 999999 | |
| 0 | 6 | 0 | 5 | 6.89 | 82.28 | -53.59 | 86.69 | 0.8025 | -469.0 | -349.9 | |
| 3 | 11 | 2 | 9 | 5.32 | 82.38 | -53.49 | 88.65 | 0.8028 | -663.2 | -434.4 | |
| 14 | -1 | 12 | -1 | 9.26 | 81.62 | -54.25 | 83.70 | 0.8081 | 773.0 | 999999 | |
| 4 | -1 | 4 | -1 | 9.68 | 81.45 | -54.42 | 83.17 | 0.8097 | 878.3 | 999999 | |
| 12 | -1 | 10 | -1 | 10.05 | 81.16 | -54.72 | 82.71 | 0.8126 | 701.1 | 999999 | |
| 6 | -1 | 5 | -1 | 9.47 | 80.95 | -54.92 | 83.41 | 0.8148 | 127.5 | 999999 | |
| 21 | -1 | 18 | -1 | 10.44 | 80.35 | -55.52 | 82.20 | 0.8204 | 905.4 | 999999 | |
| 11 | -1 | 10 | -1 | 12.39 | 79.63 | -56.24 | 79.82 | 0.8272 | -468.6 | 999999 | |
| 6 | -1 | 5 | -1 | 6.39 | 80.81 | -55.07 | 87.19 | 0.8179 | -268.0 | 999999 | |
| 12 | -1 | 10 | -1 | 10.43 | 79.50 | -56.37 | 82.19 | 0.8287 | 933.4 | 999999 | |
| 6 | -1 | 5 | -1 | 6.72 | 80.26 | -55.61 | 86.73 | 0.8231 | -16.2 | 999999 | |
| 11 | -1 | 9 | -1 | 9.20 | 79.46 | -56.41 | 83.67 | 0.8295 | 380.0 | 999999 | |
| 10 | -1 | 9 | -1 | 11.27 | 78.82 | -57.06 | 81.16 | 0.8351 | 868.6 | 999999 | |
| 44 | -1 | 39 | -1 | 10.49 | 78.53 | -57.34 | 82.08 | 0.8379 | 878.2 | 999999 | |
| 7 | -1 | 7 | -1 | 11.74 | 77.92 | -57.95 | 80.58 | 0.8434 | 720.7 | 999999 | |
| 9 | -1 | 9 | -1 | 14.62 | 76.57 | -59.30 | 77.17 | 0.8554 | -707.4 | 999999 | |
| 0 | 2 | 0 | 2 | 15.23 | 75.81 | -60.06 | 76.48 | 0.8621 | -133.0 | -176.9 | |
| 6 | -1 | 6 | -1 | 11.30 | 77.15 | -58.73 | 81.08 | 0.8505 | 713.3 | 999999 | |
| 9 | -1 | 8 | -1 | 11.63 | 76.56 | -59.31 | 80.67 | 0.8556 | 571.8 | 999999 | |
| 0 | 6 | 0 | 6 | 14.97 | 74.52 | -61.36 | 76.78 | 0.8729 | -362.0 | -353.0 | |
| 4 | 152 | 4 | 155 | 14.20 | 74.12 | -61.76 | 77.66 | 0.8762 | -248.9 | 2.2 | |
| 6 | -1 | 6 | -1 | 10.62 | 75.23 | -60.64 | 81.81 | 0.8675 | -908.4 | 999999 | |
| 6 | -1 | 6 | -1 | 10.30 | 75.25 | -60.62 | 82.17 | 0.8674 | -804.4 | 999999 | |
| 0 | 2 | 0 | 2 | 11.65 | 74.11 | -61.77 | 80.58 | 0.8766 | -283.0 | -216.0 | |
| 0 | 3 | 0 | 3 | 13.04 | 73.35 | -62.52 | 78.98 | 0.8825 | -180.0 | -121.8 | |
| 0 | 7 | 0 | 7 | 14.30 | 72.39 | -63.48 | 77.54 | 0.8899 | -642.0 | -508.6 | |
| 0 | 2 | 0 | 2 | 10.00 | 73.93 | -61.94 | 82.45 | 0.8786 | -525.0 | -358.8 | |
| 0 | 3 | 0 | 3 | 8.85 | 73.87 | -62.00 | 83.76 | 0.8796 | -463.0 | -562.5 | |
| 0 | 3 | 0 | 3 | 13.67 | 71.79 | -64.08 | 78.23 | 0.8946 | -455.0 | -394.6 | |
| 10 | 86 | 11 | 90 | 8.02 | 73.85 | -62.02 | 84.71 | 0.8802 | -717.1 | -548.1 | |
| 0 | 7 | 0 | 7 | 12.82 | 72.02 | -63.85 | 79.20 | 0.8930 | -645.0 | -528.0 | |
| 0 | 31 | 0 | 33 | 9.44 | 73.08 | -62.79 | 83.05 | 0.8857 | -671.0 | -609.1 | |
| 3 | 23 | 3 | 25 | 10.40 | 72.48 | -63.39 | 81.93 | 0.8901 | -618.5 | -463.1 | |
| 0 | 5 | 0 | 5 | 9.93 | 72.56 | -63.31 | 82.46 | 0.8896 | -470.0 | -403.5 | |
| 7 | 61 | 8 | 70 | 14.23 | 70.34 | -65.53 | 77.58 | 0.9052 | -770.1 | -470.9 | |
| 4 | -41 | 5 | -41 | 13.81 | 70.48 | -65.39 | 78.05 | 0.9043 | -644.4 | 999999 | |
| 0 | 2 | 0 | 2 | 12.55 | 71.03 | -64.85 | 79.46 | 0.9005 | -204.0 | -304.7 | |
| 4 | 28 | 4 | 32 | 13.07 | 70.67 | -65.20 | 78.87 | 0.9030 | -583.8 | 1.7 | |
| 8 | 221 | 10 | 252 | 8.40 | 71.25 | -64.62 | 84.08 | 0.9004 | -530.8 | -66.6 | |
| 6 | 55 | 7 | 69 | 14.59 | 68.18 | -67.70 | 77.13 | 0.9201 | -361.0 | -139.9 | |
| 13 | -45 | 15 | -45 | 9.05 | 70.66 | -65.21 | 83.32 | 0.9045 | -330.5 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
